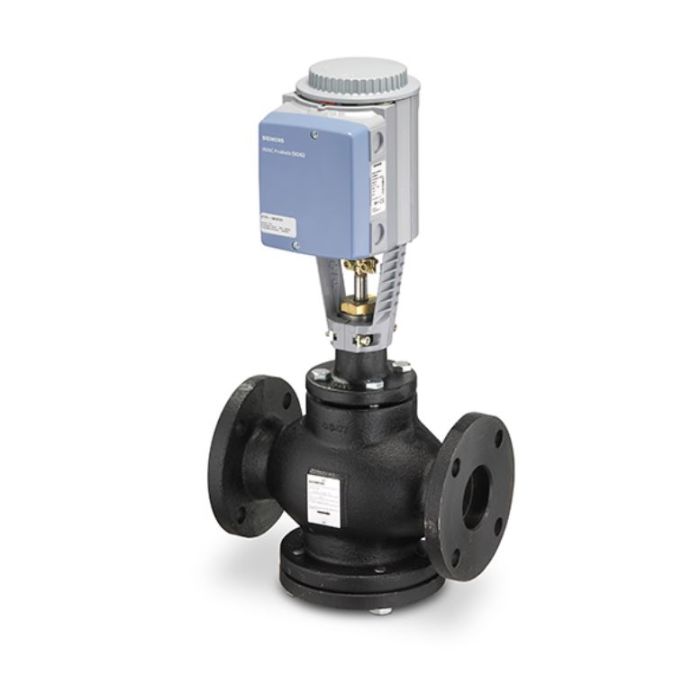

Siemens 276-06165 Globe Valve Assembly, 2 Way, 2-1/2 in.

Product Description

The Siemens 276-06165 is a globe valve assembly designed for HVAC control systems. This valve is ideal for regulating the flow of water, steam, and glycol solutions. The assembly features a stainless steel trim and is fitted with a direct coupled actuator. The actuator operates at 24 VAC with a spring return mechanism for reliable operation.

• Flanged design with a flow coefficient of 63 Cv
• Operates under ANSI Class 125 specifications
• Supports a range of operating conditions from 5 F to 130 F (-25 C to 150 C)

Product Highlights

This valve is suitable for various applications, including saturated steam and hot water systems. Its linear flow characteristic enables precise control over fluid flow.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-06165

Technical Specifications

• Power Consumption: 18 VA
• Flow Characteristic: Linear
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
• Service: Saturated steam, water, water with anti-freeze, steam
• Minimum Order Quantity: 1
