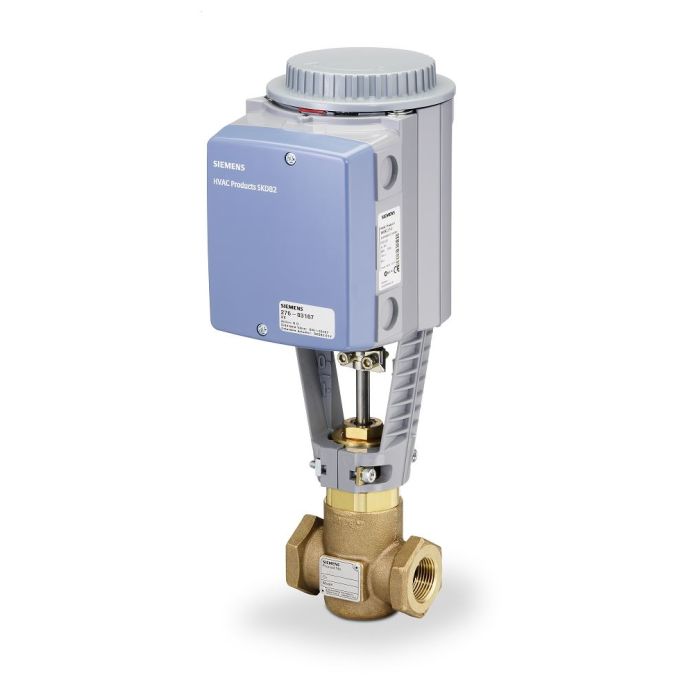

Siemens 276-03112 Globe Valve Assembly 2 Way, 3/4 in.

Product Description

The SIEMENS 276-03112 globe valve assembly is a 2-way valve with a 3/4 inch NPT connection and a 6.3 Cv flow coefficient. It features stainless steel trim and a direct coupled actuator with spring return, designed for normally open, three-position, floating control. Suitable for saturated steam, water, and glycol solutions up to 50%.

• ANSI Class 250
• Stainless steel trim
• Normally Open Fail-Safe Position

Product Highlights

This globe valve assembly is designed for precise control in HVAC and industrial applications, ensuring reliable performance with its spring return actuator and stainless steel components.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 276-03112
• Country of Origin: US

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
• Power Consumption: 18 VA
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
• CV: 6.3
• Trim: Stainless Steel
• Actuator: SKD82.51U
• Fail-Safe: Spring Return
• Pipe Size: 0.75 in
• Connection: NPT
• Valve Type: 2-Way
• Nema Rating: Nema 1
• Power Supply: Electric
• Fail Safe Position: Normally Open
• Valve Size: 0.75
• Valve Pattern: 2-Way
• Valve Cv/GPM: 6.3
• Body Rating: 250
• Rated Close-off: 250
• Max Temp: 250
• Actuator Type: Spring Return
• Control Signal Type: 3-Position
• Nominal Voltage: 24
