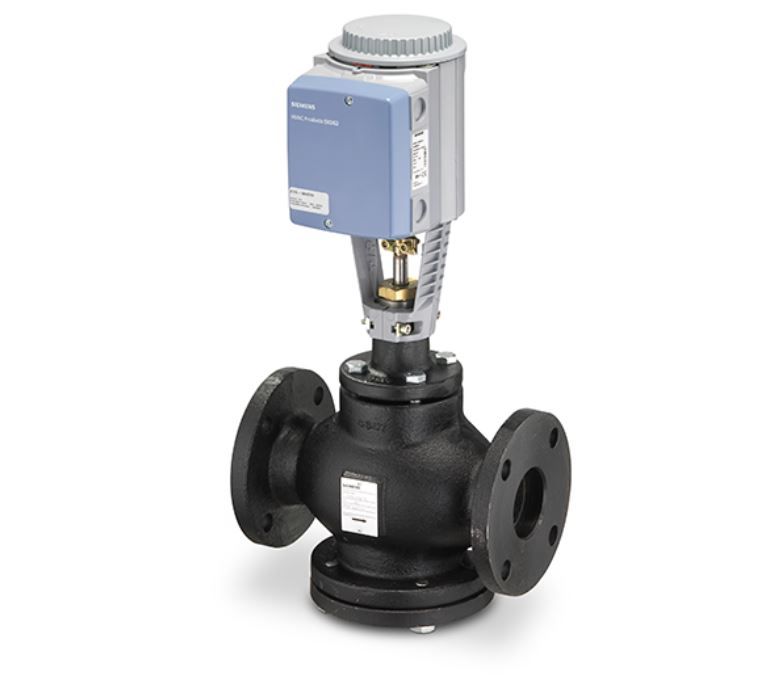

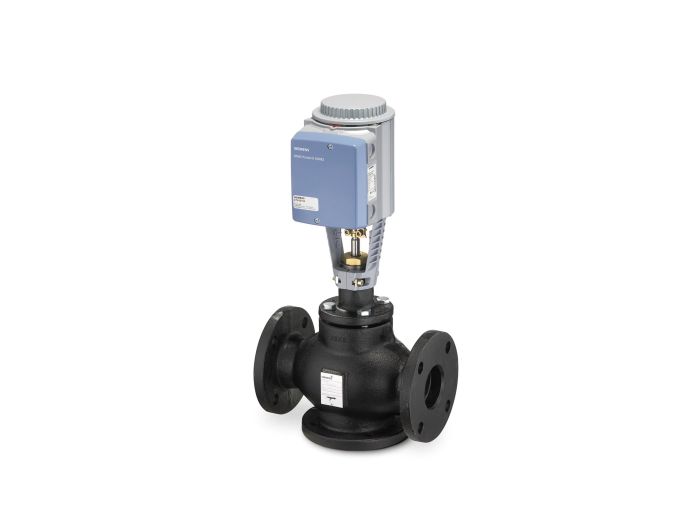

Siemens 275-06170 Globe Valve Assembly 24 Vac (2-1/2 in.)

Product Description

Siemens 275-06170 is a flanged 3-way globe valve assembly with a 2-1/2 inch size and 63 Cv flow capacity. The valve uses a direct-coupled non-spring return actuator with three-position floating control at 24 Vac and approximately 13 VA power consumption, and features a linear flow characteristic suitable for saturated steam, water, and water with antifreeze.

• 3-way flanged globe valve, 2-1/2 in. size, 63 Cv flow coefficient
• Direct-coupled non-spring return actuator, three-position floating control, 24 Vac, ~13 VA
• Stainless steel trim, linear flow characteristic, ANSI Class 250; suitable for steam and water service

Product Highlights

3-way flanged globe valve, 2-1/2 in., 63 Cv, 24 Vac NSR actuator

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 275-06170
• Country of Origin: United States of America

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 275-06170
• Product Type: Globe valve assembly
• Series: Flowrite 599 Series
• Valve Type: 3-way mixing globe valve
• Size: 2-1/2 in.
• Flow Coefficient (Cv): 63 Cv
• Trim Material: Stainless steel trim
• End Connection: Flanged
• Actuator Type: Direct-coupled non-spring return actuator, electro-mechanical
• Actuator Model: SKD82.50U
• Actuator Voltage: 24 Vac, 50/60 Hz
• Power Consumption: 13 VA
• Control Signal Type: Three-position floating control
• Flow Characteristic: Linear (equal percentage option noted in some listings)
• Service / Media: Saturated steam; water; water with antifreeze
• Pressure Class: ANSI Class 250
• Stroke: 3/4 in.
• Fail-Safe / Return: Non-spring return (fail-in-place)
• Close-off Pressure: 34 PSI
• NEMA Rating: NEMA 1
• Certifications: CSA, UL
