Siemens 274-06171 Globe Valve Assembly 24 VAC 17 VA (3 in) 27406171

Product Description

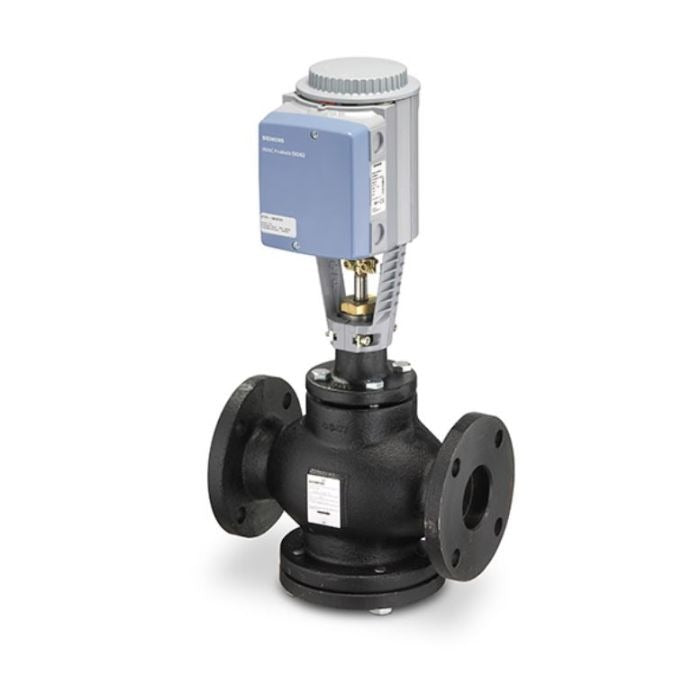

Siemens 274-06171 is a flanged 3-way globe valve assembly with bronze trim and a direct-coupled spring-return actuator. It operates on 24 VAC with 17 VA power consumption, provides a 100 Cv flow coefficient, and supports modulating control via 0 to 10 VDC or 4 to 20 mA signals. The assembly has a linear flow characteristic, NEMA 1 housing, and is rated for water and glycol solutions up to 50%.

• Flanged 3-way globe valve, 3 in size, 100 Cv, bronze trim
• Direct-coupled actuator (SKD62U) with 250 in-lb torque and spring-return fail-safe
• 24 VAC operation, 17 VA; modulating control compatible with 0–10 VDC or 4–20 mA

Product Highlights

3-inch flanged 3-way globe valve assembly; 100 Cv; modulating control; suitable for water and up to 50% glycol; NEMA 1 housing.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 274-06171
