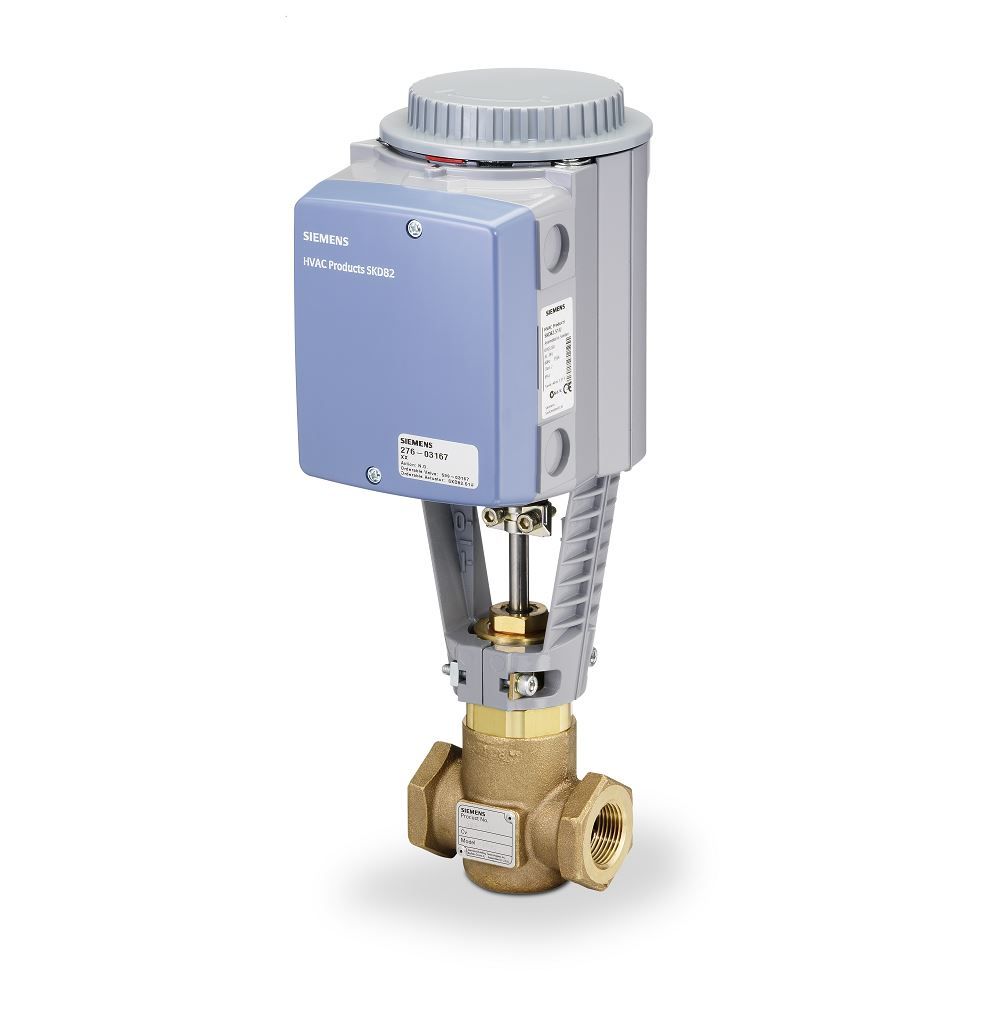

Siemens 274-03112 Globe Valve Assembly, 2 Way, 3/4 in.

Product Description

The SIEMENS 274-03112 globe valve assembly is a 2-way valve with a 3/4 inch connection. It features a 6.3 Cv, stainless steel trim, and a direct coupled actuator. Designed for modulating control with 0 to 10 VDC or 4 to 20 mA, this valve is normally open with a spring return and consumes 14 VA of power.

• F x F Connection
• NPT Connection
• Stainless Steel Trim

Product Highlights

This globe valve assembly is ideal for controlling the flow of saturated steam, water, and glycol solutions in HVAC systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 274-03112
• Country of Origin: US

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
• Power Consumption: 14 VA
• Flow Characteristic: Equal Percentage
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
• CV: 6.3
• Trim: SS
• Actuator: SKD62U
• Pipe Size: 0.75 in
• Connection: NPT
• Valve Type: 2-Way
• Nema Rating: Nema 1
• Power Supply: Electric
• Control Signal: 0-10vdc, 4-20mA
• Close Off Pressure: 250 PSI
• Fail Safe Position: Normally Open
• Brand: Siemens
• Control Input: Modulating
• Type: Valve (Globe)
• Valve Size: 0.75" - 2 Way
• Voltage: 24V
• Manufacturer Part Number: 274-03112
• Manufacturer: Siemens Building Technologies
• Product Series: FLOWRITE
• Capacity: 6.3 Cv
• Connection Type: Threaded
• Max Close-Off Pressure: 250 psi
• Body Pattern: Two-Way
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Nominal Voltage: 24 VAC
• Fail-Safe Mode: Spring Normally Open
• Comments: 4-20 mA or 0-10 VDC Control Signals
• Valve Pattern: 2-Way
• Valve Cv/GPM: 6.3
• Body Rating: 250
• Rated Close-off: 250
• Max Temp: 250
• Actuator Type: Spring Return
