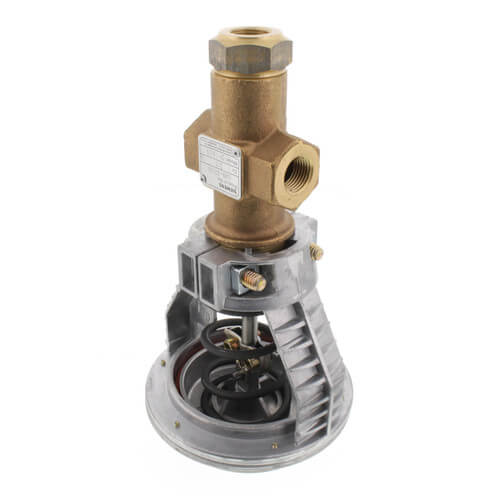

SIEMENS 268-03007 FlowRite Globe Valve Actuator Combo 1-1/2 inch 2-Way NO

Product Description

Discover the Siemens 268-03003 FlowRite Globe Valve Actuator Combo, meticulously engineered for superior performance in HVAC systems. This two-way valve, crafted from durable stainless steel, offers reliable operation and easy installation. Ideal for hot or chilled water and steam applications, the unit features a female to female connection with a 1-1/2 inch size.

• ANSI Leakage Class IV offers minimal leakage, enhancing system efficiency.
• Features stainless steel trim with equal and linear flow characteristics for precise control.
• Includes a robust 4-inch pneumatic actuator adjustable from 3 to 8 psi for optimal versatility.

Product Highlights

The Siemens FlowRite actuator is directly coupled with a universal bonnet, simplifying setup. Its large diaphragm area ensures accurate control, while the metal housing guarantees longevity. Cartridge type packing and optional high-temperature variants cater to diverse operating conditions.

Product Information

Technical Specifications

• Connection Size: 1-1/2 inches
• Connection Type: Female x Female
• Body Pattern: 2-Way
• Material: Stainless Steel
• Actuator Size: 4 inches
• Pressure Range: 3-8 psi
• Flow Capacity: 25.0 Cv
