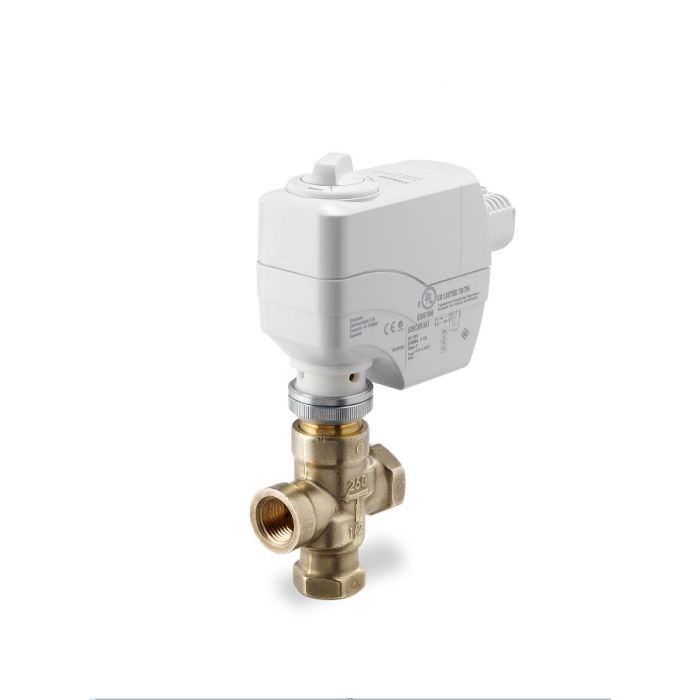

Siemens 259-02068 3-Way Globe Valve 24 Vac (1/2 in)

Product Description

Siemens 259-02068 is a 1/2 in three-way globe valve assembly with a direct-coupled actuator designed for floating (three-position) control on 24 Vac systems. The valve features a 2.5 Cv flow coefficient, brass trim, NPT connections and a linear flow characteristic. The actuator is non-spring return with 200 N force and 0.8 VA power draw for three-position operation. Housing is NEMA 1 suitable for water and water-glycol applications.

• 1/2 in NPT, three-way globe valve; Cv 2.5; brass trim; linear mixing flow
• Direct-coupled actuator, 200 N force; non-spring return (fail-in-place); floating three-position control; 24 Vac, 0.8 VA
• NEMA 1 enclosure; electrical connection via plenum cable or 3/8-inch flex conduit; service for water and water-glycol to 50%, low pressure steam <15 psi; operating 5 C to 50 C

Product Highlights

1/2 in 3-way mixing globe valve, 2.5 Cv, 24 Vac floating actuator, brass trim, NPT connections

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 259-02068
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• MPN: 259-02068
• Product type: 3-way globe valve assembly
• Connection: Female NPT
• Size: 1/2 in
• Flow Coefficient (Cv): 2.5
• Trim Material: Brass
• Flow Characteristic: Linear
• Actuator Type: Direct-coupled actuator
• Actuator Force: 200 N
• Actuator Model: SSC81U
• Return Type: Non-spring return (fail-in-place)
• Control: Floating control, three-position
• Input Voltage: 24 Vac
• Power Consumption: 0.8 VA (three-position/floating)
• Enclosure Rating: NEMA 1
• Electrical Connection: Plenum cable or 3/8-inch flex conduit
• Service Media: Water; water-glycol solutions up to 50%; low pressure steam <15 psi
• Operating Temperature: 41 F to 122 F (5 C to 50 C)
• Close-off Pressure: 50 PSI
• Weight: 2.02 lb
• Country of Origin: United States
