Product Description

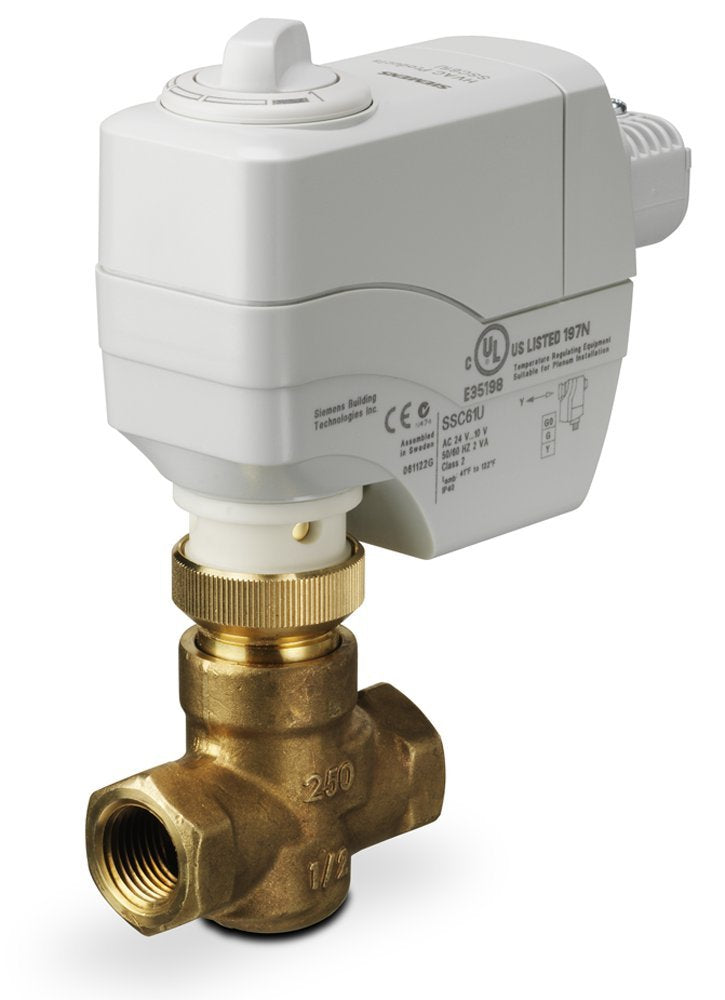

The Siemens Valve Assembly 259-02006 is a robust product designed for HVAC systems. This valve assembly features a 1/2-inch line size and a flow rate of 1.6 Cv. It has a female by female connection and includes an electronic actuator.
- Two-way terminal unit valve
- Powermite SSC81U actuator
- ANSI leakage Class IV
Product Highlights
This Siemens valve assembly is normally closed, making it ideal for applications where a fail-safe mechanism is required. The brass trim enhances durability, and the electronic actuator allows for precise control.
Product Information
Standard Information
-
Voltage: 24 volts AC
-
Line Size: 1/2 inch
Technical Specifications
-
Connection: Female by female
-
Flow Rate (Cv): 1.6
-
Control Signal: Floating
-
Position: Normally closed
-
Trim: Brass
-
Leakage Class: ANSI Class IV
-
Applications: HVAC systems
-
Operating Temperature: Not specified
