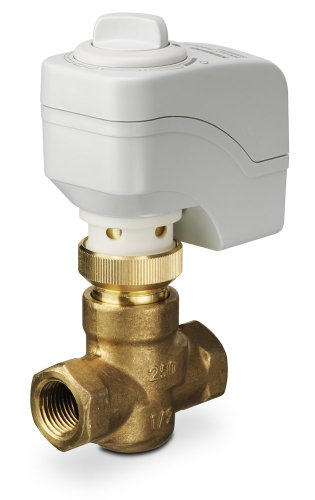

SIEMENS 254-01100 Valve Actuator Assembly 0.4 Cv 1/2 inch NPT

Product Description

The Siemens 254-01100 is a robust valve and actuator assembly designed for professional use, offering reliable control over water flow in various HVAC applications. This assembly features a brass body and trim with a 0.4 Cv flow rate, ideal for air-conditioning and refrigeration systems.

• Highly durable forged brass body.
• Equipped with a 24Vac non-spring return floating actuator.
• Efficient flow control with equal percentage flow characteristic.

Technical Specifications

With its precision engineering, the Siemens 254-01100 provides consistent performance and quality. The valve is typically used for controlling hot or chilled water in convectors, fan coil units, and other terminal units. Its design optimizes the flow and minimizes energy costs.

• Connection Type: 1/2 inch Female NPT.
• Body Material: Forged Brass.
• Actuator Type: 24Vac non-spring return, floating.
• Cv Rating: 0.4.
• Valve Type: 2-Way, Normally Closed.
• Pressure Class: ANSI Class 250.
• Actuator Model: SSB81U Fail-in-Place.
