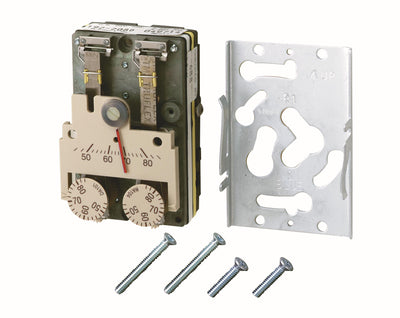

Siemens 192-208 RM STAT H/C 45/85F DA/RA

Product Description

The Siemens 192-208 is a pneumatic room thermostat suitable for heating and cooling applications. It features a dual setpoint control with specific pressure settings for heating and cooling. The device operates on a pressure range of 18 to 25 psi for heating and 15 to 30 psi for cooling. This model is a part of the two-pipe system designed for high air capacity and efficient temperature management.

• Brand: Siemens
• Model Number: 192-208
• Operating Temperature Range: 45°F to 85°F

Product Highlights

The Siemens thermostat provides easy installation and effective control in various settings.

Product Information

Standard Information

• Brand: Siemens Building Technology
• MPN: 192-208

Technical Specifications

• Item Number: 192-208
• Action Type: Reverse Acting
• Max Air Pressure: 30 psi
• Control Air Pressure: 15 to 30 psi
• Temperature Scale: Fahrenheit
• Air Connections: 5/32 in Barb
• Ambient Temperature: Max 140°F
• Weight: 0.66 lbs
• Dimensions: Height - 3.375 in, Width - 2.125 in, Depth - 1.625 in
