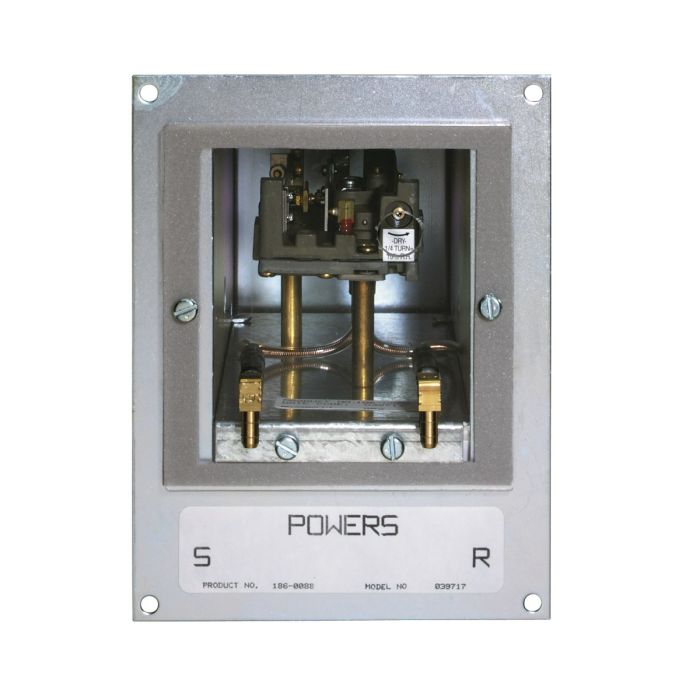

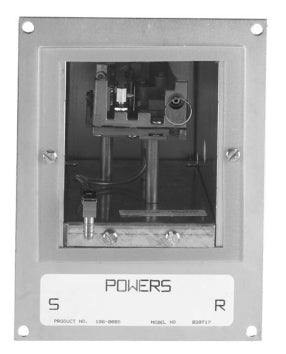

Siemens 186-0088 Pneumatic Duct Hygrostat 135F Replacement MPN

Product Description

The Siemens 186-0088 Pneumatic Duct Hygrostat is a device designed for monitoring and controlling humidity levels in HVAC systems. This model operates within a control range of twenty percent to ninety percent relative humidity and can withstand a maximum dry bulb temperature of one hundred thirty-five degrees Fahrenheit. The unit features an adjustable sensitivity system to respond to slight changes in humidity levels, making it an essential tool in maintaining optimal conditions.

• Pneumatic instrument sensitive to changes in relative humidity
• Adjustable sensitivity with bimetal temperature compensation
• Perfect for use in commercial and critical applications

Product Highlights

This hygrostat is widely used for comfort control in environments such as hospitals, schools, and offices. It is suitable for more specialized applications, including humidity control in museums and computer rooms.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 186-0088

Technical Specifications

• Control Type: Reverse Acting
• Control Range: 20% to 90% RH
• Maximum Temperature: 135°F
• Weight: 2.84 lbs
• Shipping Dimensions: 9.9 x 9.8 x 9.1 inches
• Max Pressure: 30 PSI
• Material: Galvanized steel housing (duct model)
• Mounting Type: Duct mounted
