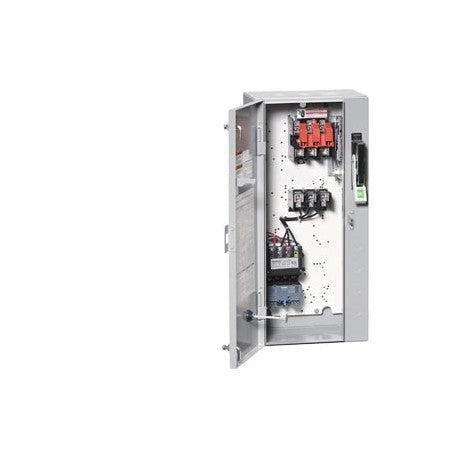

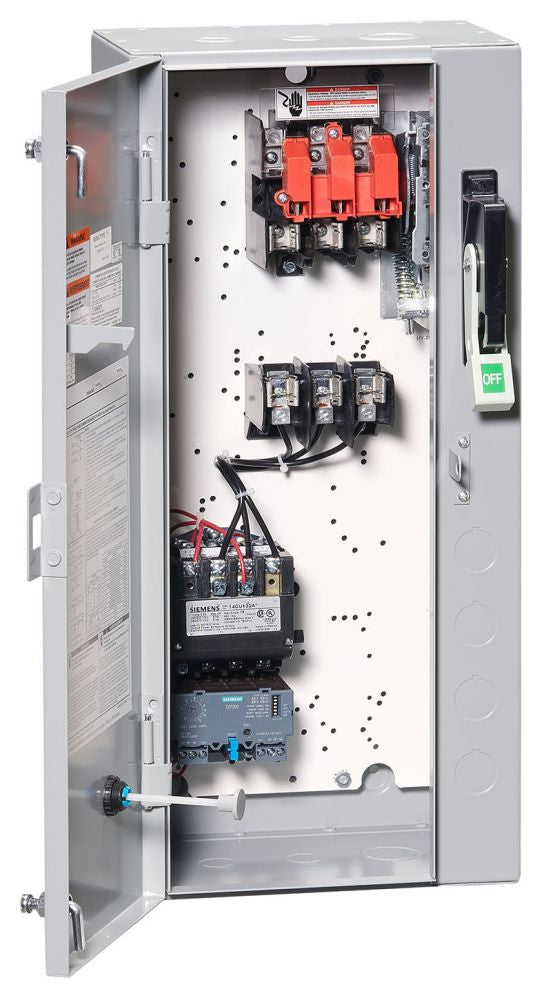

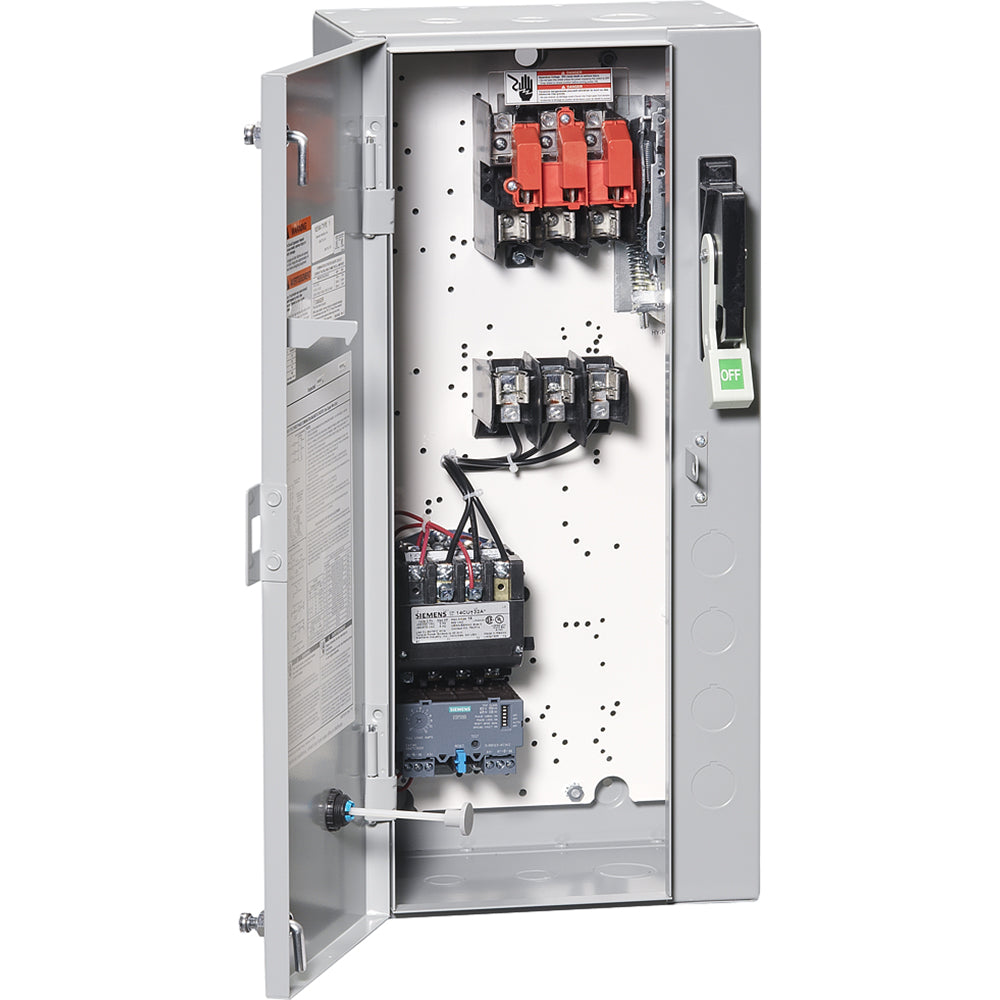

Siemens 17DUD92BF10 Combination Starter 3 hp (Size 1) SIE17DUD92BF10

Product Description

Siemens 17DUD92BF10 is a size 1, full-voltage non-reversing combination motor starter featuring an H2 solid-state overload relay and a 30 A fusible disconnect. It provides overload protection adjustable from 5.5 to 22 A, a 110 V AC 50 Hz / 120 V AC 60 Hz control coil, and is intended for three-phase motor control up to 600 VAC and 3 hp motors in indoor general-purpose NEMA 1 enclosures.

• H2 solid-state overload relay, adjustable 5.5 to 22 A with automatic, manual, or remote reset
• Combination starter with 30 A fusible disconnect and 30 A / 250 V fuse clip; 3 pole, 3 phase
• Control coil 110 V AC (50 Hz) / 120 V AC (60 Hz); rated for motor applications up to 3 hp and service up to 600 VAC

Product Highlights

Non-reversing full-voltage combination starter with solid-state overload protection and 30 A fusible disconnect in a NEMA 1 enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 17DUD92BF10
• Country of Origin: USA

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 17DUD92BF10
• Product Type: Combination motor starter, full voltage, non-reversing
• Size: Size 1
• Motor Horsepower: 3 hp
• Phase: 3
• Number of Poles: 3
• Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
• Frequency Rating: 50/60 Hz
• Control Voltage Range: 110-120 VAC
• Overload Relay Type: H2 solid-state
• Overload Amp Range: 5.5-22 A
• Reset Type: Automatic / Manual / Remote
• Fusible Disconnect Rating: 30 A
• Fuse Clip Rating: 30 A / 250 V
• Current Rating: 27 A
• Load Voltage Rating: Up to 600 VAC
• Enclosure Type: NEMA 1 (indoor general-purpose)
• Mounting Type: Vertical / Surface mount
• Connection Type: Box lug line side, screw terminal load side
• Terminal Type: Screw
• Dimensions: 24 in H x 11 in W x 8 in D
• Weight: 34 lb
• Operating Temperature: -4 to 104 deg F (-20 to 40 deg C)
• Operating Cycles: 10,000,000
• Short Circuit Rating: 100 kA when protected with Class R fuses to 600 V or MCP to 480 V
• Auxiliary Contact: 1 NC
• Approvals: UL 508; CSA 22.2
• Certifications/Compliance: REACH compliant; RoHS compliant
• Country of Origin: USA
• GTIN/UPC: 662643806182
