Siemens 17CUB92BA11 Starter, Combo Sz0,0

Product Description

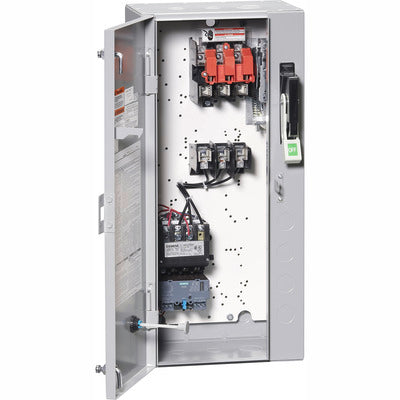

The Siemens 17CUB92BA11 is a non-reversing motor starter, size 0, featuring an H2 solid-state overload relay with an amp range of 0.75-3.4A. It includes a 110/120/220/240VAC 60Hz coil and a 30A fusible disconnect with 30A/600V fuse clip. The enclosure is NEMA type 1, suitable for indoor general-purpose use.

• Solid-state overload relay with an amp range of 0.75-3.4A
• 30A fusible disconnect with 30A/600V fuse clip
• NEMA type 1 enclosure for indoor, general-purpose use

Product Highlights

Siemens 17CUB92BA11 is a reliable combination starter with a solid-state overload relay and fusible disconnect, designed for motor control in general-purpose indoor environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 17CUB92BA11
• Country of Origin: USA

Technical Specifications

• Amperage: 18 Amp
• Power Supply: 600 V
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Operating Cycles: 10000000
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Manufacturer: Siemens
• Type: SZ 0 Class 17 Full Voltage Heavy Duty Non-Reversing
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Number of Motors: 1
• Voltage - Load: 600V
• Current - Output: 18A
• Wattage - Load: 1490 W
• Input Voltage: 110 ~ 240VAC
• Mounting Type: Chassis Mount
• Operating Temperature: -20°C ~ 40°C
• UNSPSC: 39121521
• Reset Type: Automatic/Manual/Remote
• Application: Indoor General Purpose Use
• Coil Voltage: 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC
• Enclosure Type: NEMA 1
• Overload Relay: Solid-State
• Voltage Rating: 575/600
• Connection Type: Box Lug/Screw Terminal
• Frequency Rating: 50/60
• Motor Power: 1-1/2 hp, 2 hp
• Primary brand: Siemens
• Order code / Manufacturer SKU: 17CUB92BA11
• Manufacturer product status: Commercialized
