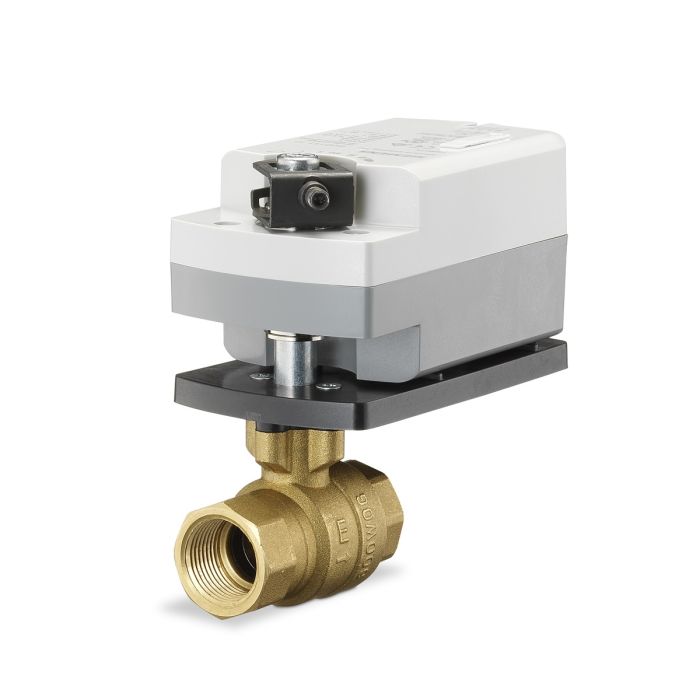

Siemens 172K-10301S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 172K-10301S is a two-way ball valve assembly with a half-inch connection. It operates using a direct coupled actuator and is designed for water service or a water-glycol solution. This component features a spring return mechanism with modulating control from zero to ten VDC.

• Stainless steel ball and stem for durability
• Blow-out proof stem designed for high pressure
• Universal mounting plate allows for easy installation

Product Highlights

The Siemens ball valve assembly simplifies control in HVAC systems by providing reliable performance and easy installation options.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172K-10301S
• Minimum Order Quantity: 1

Technical Specifications

• Power Consumption: 4.5 VA running, 3.5 VA holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG plenum cable
• Housing: NEMA 1
• Service: Water, 50% water-glycol solution
