Product Description

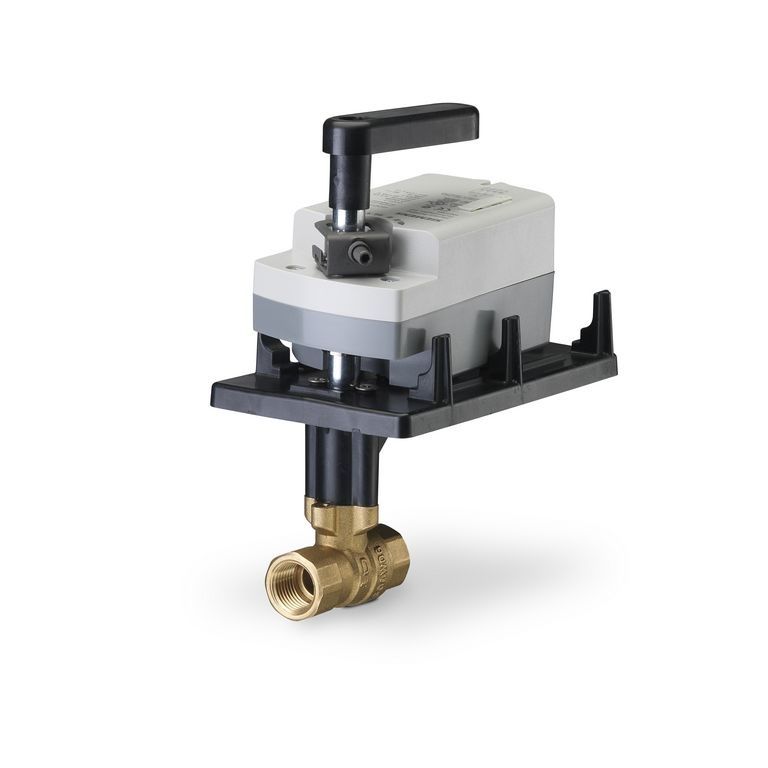

The Siemens 172H-10300S Ball Valve Assembly is designed for use in HVAC control systems. This two-way valve operates at a half-inch size and features a stainless steel ball and stem construction. It provides reliable performance in various applications.
- Flow coefficient of 0.4 Cv
- Direct coupled actuator with a spring return
- Operating voltage of 24 VAC
Product Highlights
This valve assembly supports two-position control and is ideal for systems requiring reliable fluid flow management.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 172H-10300S
Technical Specifications
-
Housing: NEMA 1
-
Service: Water, 50% Water-Glycol Solution
-
Power Consumption: 6.5 VA Running, 4 VA Holding
-
Close-Off Pressure: 200 psi
-
Flow Characteristic: Equal Percentage
-
Operating Conditions: -25 F To 130 F (-32 C To 55 C)
-
Electrical Connection: 3 ft. 18 AWG Plenum Cable
