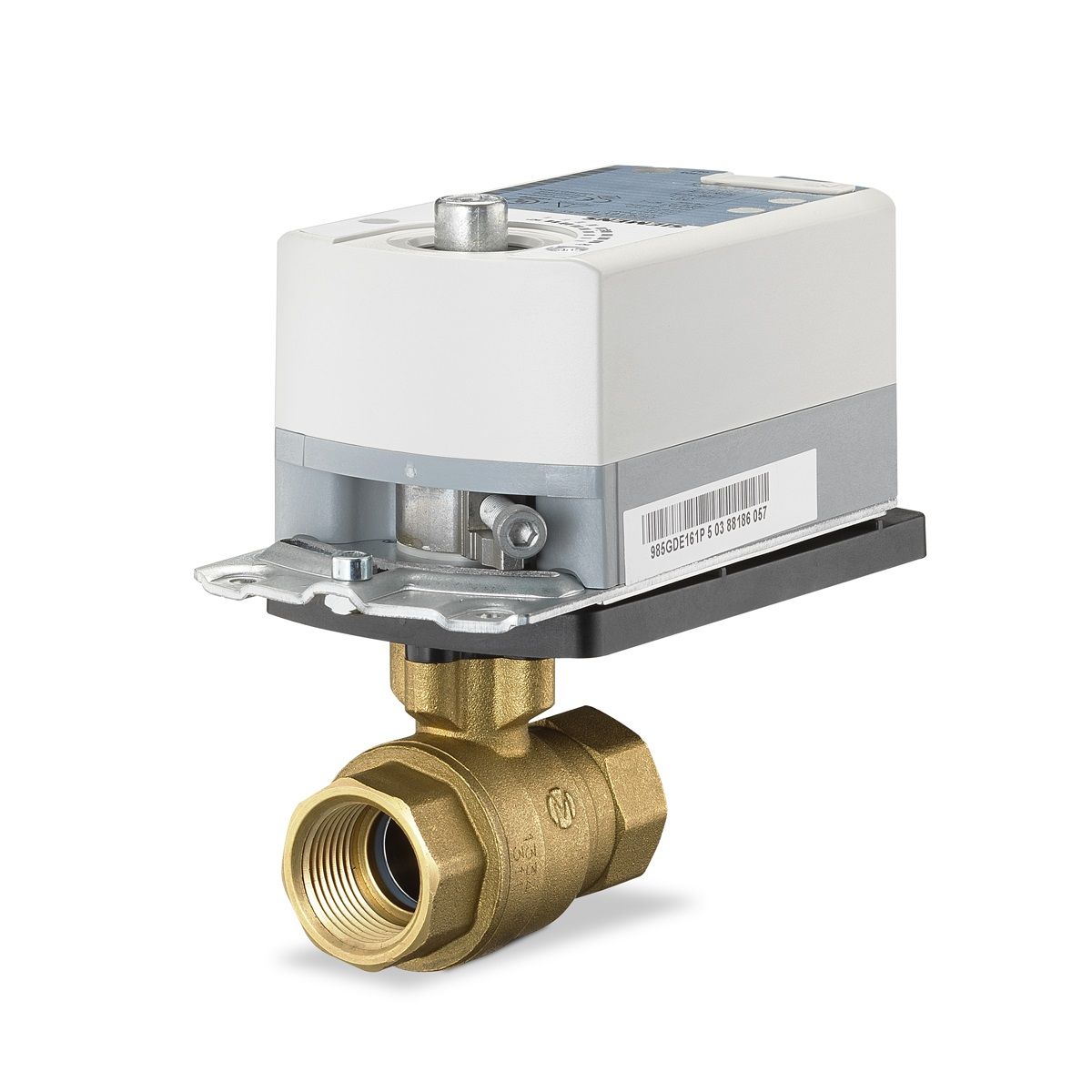

Siemens 171C-10301S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 171C-10301S is a two-way ball valve assembly designed for flow control in HVAC applications. This valve features a stainless steel ball and stem, ensuring durability and reliability in various environments. It is direct coupled and operates with a modulating control signal of zero to ten VDC.

• Max pressure handling of two hundred psi.
• Built-in feedback for real-time performance monitoring.
• Operating temperature range from minus twenty-two degrees Fahrenheit to one hundred thirty degrees Fahrenheit.

Product Highlights

This ball valve assembly is suitable for water and fifty percent water-glycol solutions.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171C-10301S

Technical Specifications

• Housing: NEMA 2, IP54
• Power Consumption: 3.3 VA (modulating), 2.3 VA (three-position)
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 130 F (-30 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG plenum cable
