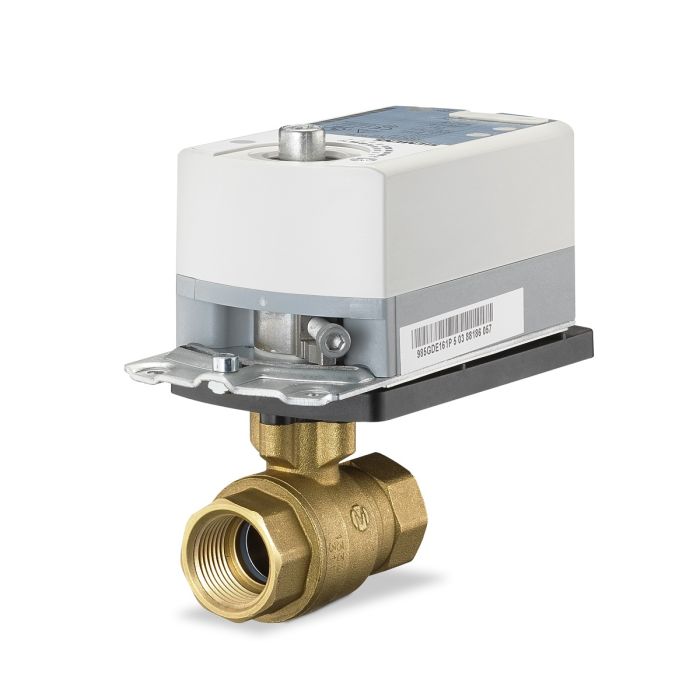

Siemens 171A-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 171A-10300S is a two-way ball valve assembly with a half-inch connection. It features a stainless steel ball and stem, designed to handle high pressure with reliability. This valve operates on 24 VAC power and has a total power consumption of 2.3 VA. It is suitable for use in HVAC systems where precise control of water or glycol solutions is necessary.

• Durable stainless steel construction
• Blow-out proof stem
• Universal mounting plate for easy installation

Product Highlights

This product is ideal for HVAC control systems. It supports direct coupling with actuators and includes a thermal barrier to protect against heat transfer.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171A-10300S

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 3.3 VA (Modulating), 2.3 VA (Three-Position)
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 130 F (-30 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
