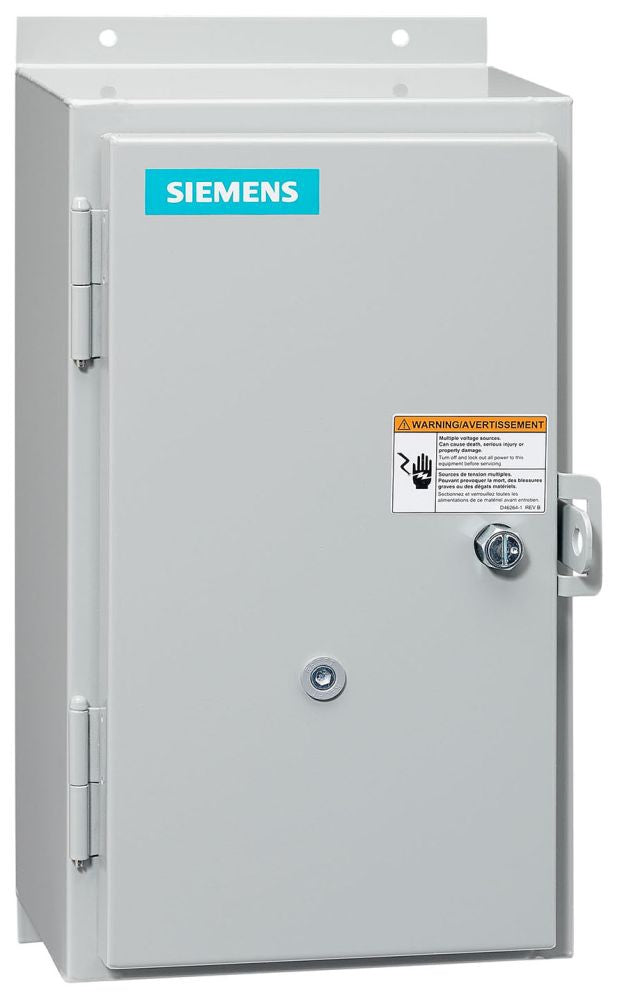

Siemens 14FUF320A motor starter 13 to 52 amp

Product Description

The SIEMENS 14FUF320A is a non-reversing motor starter, size 2, with an H2 solid-state overload relay and an OLR amp range of 13-52A. It features a 110#120/220#240VAC 60Hz coil and is a non-combination type with a standard width enclosure. Designed with enclosure type 12, it is dust/drip proof for indoor use.

• Non-reversing motor starter
• Size 2
• H2 Solid-state overload relay

Product Highlights

Motor starter with solid-state overload relay, suitable for indoor environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14FUF320A
• Country of Origin: USA

Technical Specifications

• GTiN: 00783087947191
• Size: NEMA 2
• Type: Full Voltage Non-Reversing,Class 14,Heavy Duty
• Brand: Siemens
• Voltage: 240 Volt
• Amperage: 45 Amp
• Standard: CSA Certified File LR6535,UL Listed File E14900
• Enclosure: NEMA 12 3/3R
• NEMA Size: 12,3R,3
• Sub Brand: Siemens
• Reset Type: Auto/Manual
• Motor Power: 10 hp
• Product UPC: 78308794719
• 12-Digit UPC: 783087947191
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Operating Cycles: 10000000
• Country Of Origin: USA
• Motor FLA Range: 13-52 A
• Manufacturer Part Number: 14FUF320A
• UPC Code: 783087947191
• Coil: 110-120/220-240
• Overload Range: 13-52
• Max HP at 200 V: 10
• Max HP at 230 V: 15
• Max HP at 460 V: 25
• Replacement Coil: 75D73070A
• Contact Kit (3 required): 75FP14
