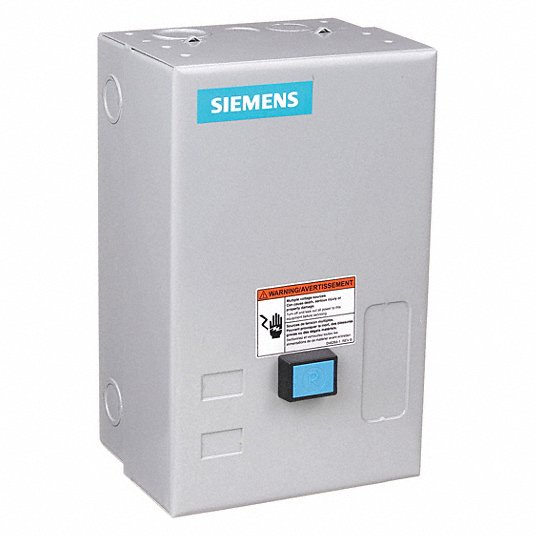

Siemens 14DUD32BH Starter, FVNR SZ1, 5.5-22Amps, N1, 480V

Product Description

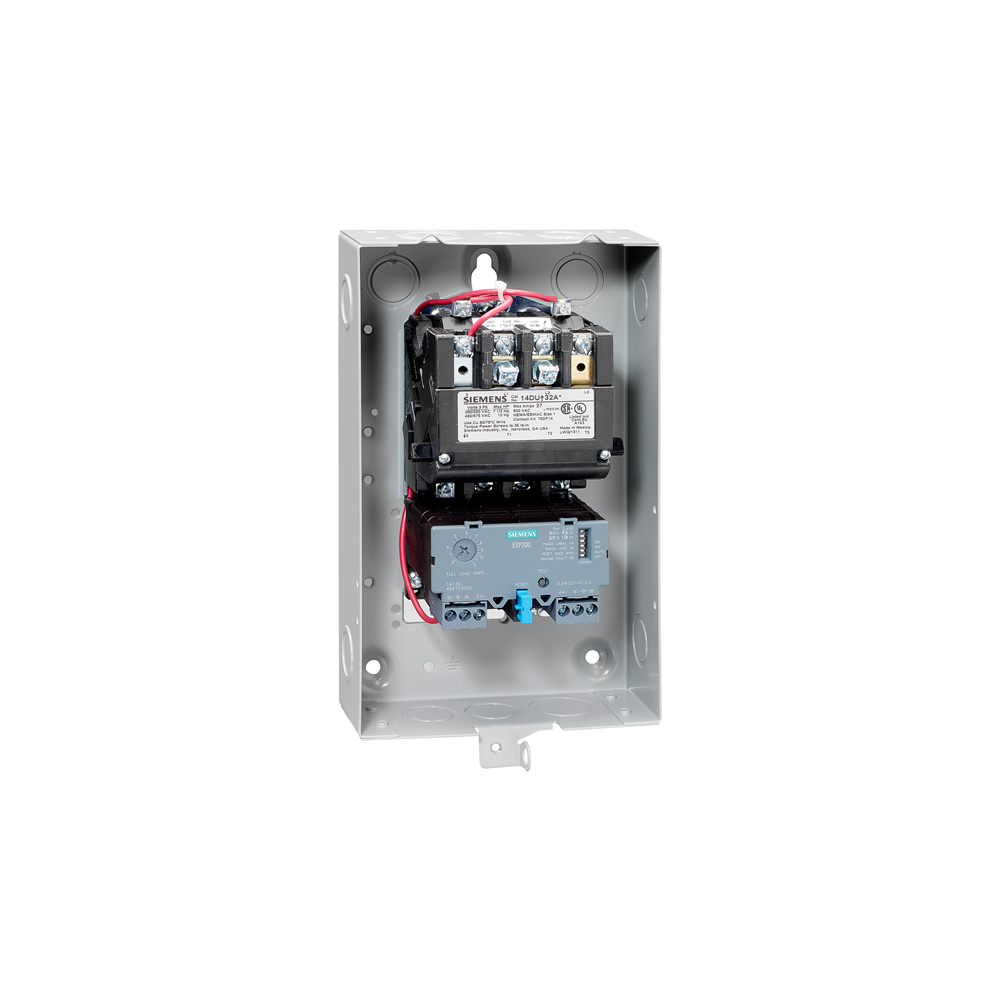

The SIEMENS 14DUD32BH is a NEMA motor starter, SZ 1 Class 14 across the line full voltage heavy duty non-combination non-reversing. It operates at 575/600 VAC with a frequency of 50/60 Hz and amperage of 5.5 to 22 A. It features a solid-state overload relay and screw connection.

• Rugged industrial design
• Half sizes for cost and space savings
• Dual voltage and dual frequency coils

Product Highlights

This motor starter is designed for durability and space efficiency, offering dual voltage and frequency coils for versatile motor control applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14DUD32BH
• Country of Origin: Mexico

Technical Specifications

• Coil: 440-480
• Enclosure: NEMA 1
• Nema Size: 1
• Item Weight: 8.50 lbs per EA
• Overload Range: 5.5-22
• Max HP at 200 V: 3
• Max HP at 230 V: 3
• Max HP at 460 V: 10
• Replacement Coil: 75D73070H
• Contact Kit (3 required): 75DF14
• Brand: Siemens
• Part Number #: 14DUD32BH
• SKU #: 2256518
• Coil Voltage: 440 to 480 V AC, 380 to 440 V AC
• Dimensions: 11 in H x 7 in W x 5 in D
• Type: SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing
• UNSPSC: 39121521
• UPC: 00783087945234
• GTIN: 00783087945234
• Country of Origin: United States of America (the)
• Amperage Rating: 5.5 to 22 A
• Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
• Connection Type: Screw
• Frequency Rating: 50/60 Hz
• Motor Power: 3 hp, 10 hp
• Number of Poles: 3
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -4 to 104 deg F
• Overload Relay: Solid-State
• Reset Type: Automatic/Manual/Remote
• Width: 14 in
• BABA Compliant: No
• Voltage Rating: 575/600 V AC
• Sold as: EACH
• UNSPSC Code: 39120000
• Amperage: 5.5-22 A
• Control Voltage: 440 to 480 V
• Horsepower, Max, 3 Phase, at 200 V: 7 1/2
• Horsepower, Max, 3 Phase, at 230 V: 71 2
• Horsepower Rating: 10 hp
• Manufacturer Part Number: 14DUD32BH
• Motor FLA Range: 5.5-22 A
• Mounting Type: Panel Mount
• Overall Depth: 11 in.
• Overall Dimensions: 6.41 x 5 x 11
• Overall Length: 6.41 in
• Overall Width: 5 in.
• Phase: 3 Phase
• Primary Type: DOL Starter
• Series: Class 14 Series
• Starter Type: NEMA Starter
• Unit of Measure: EA
• UPC Code: 783087945234
• Starter Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Reversing Capability: Non-Reversing
• Max Current (AC): 27 A
• Minimum Overload Relay Current Setting: 5.5 A
• Maximum Overload Relay Current Setting: 22 A
• Trip Class: 5/10/20/30
• Nominal Coil Voltage @ 60Hz: 480V AC
• Horsepower @ Three Phase - 208V AC: 3 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 10 hp
• Horsepower @ Three Phase - 600V AC: 10 hp
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• Wire Termination Type: Screw
• NEMA Enclosure Rating: 1
• Overall Height: 11 in
• Mounting Style: Surface
• Mounting Postion: Vertical
• Minimum Operating Temperature: -4 °F
• Maximum Operating Temperature: 104 °F
• Mechanical Operating Durability: 10,000,000
• Response Time: 10 to 24 msec (OFF-Delay Time); 19 to 29 msec (ON-Delay Time)
• Standards: CSA 22.2 No.14; NEMA ICS 2; UL 508
• Construction Standard: NEMA 600V AC
• Size: NEMA Size 1
• UL Cont. Amps: 27A
• Hp 3-Phase 200V: 3 hp
• Hp 3-Phase 230V: 3 hp
• Hp 3-Phase 460V: 10 hp
• Hp 3-Phase 575V: 10 hp
• Auxiliary Contacts: (1) NO
