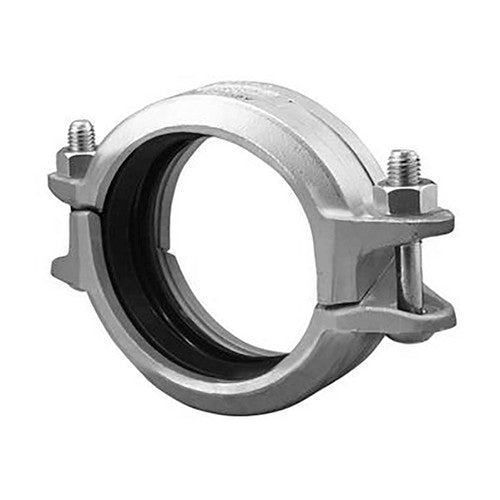

SHURJOINT SS7 Rigid Grooved Coupling

Product Description

The Shurjoint SS7 series 316 stainless steel rigid coupling is effective for connecting Sch. 5S, Sch. 10S, or Sch. 40S stainless steel pipes where a rigid connection is essential. This coupling is designed with a tongue and groove mechanism and a robust bolt pad for a secure connection. It avoids the risk of damage that can occur with built-in teeth on lighter wall pipes.

• Compatible with Sch. 5S, Sch. 10S, and Sch. 40S stainless steel pipes.
• Utilizes a tongue and groove connection method.
• Built with a heavy-duty bolt pad for reliability.

Product Highlights

The Shurjoint SS7 provides a sturdy solution for applications requiring rigid pipe connections, ensuring durability and performance.

Product Information

Standard Information

• Connection Type: Grooved coupling
• Housing Material: Type CF8M 316 Stainless Steel

Technical Specifications

• Max Working Pressure: 600 PSI
• Gasket Material: EPDM
• Bolts & Nuts: 304 Stainless Steel track bolts & HD nuts
• Certifications: ASTM A743 CF8M (housing), NSF/ANSI 61 (gasket), A193 B-8M (bolts), ASTM A193 B8M (nuts), UL Listed (Canada & US), FM Approved
