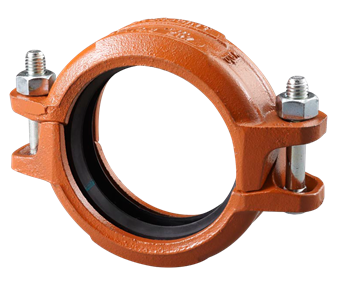

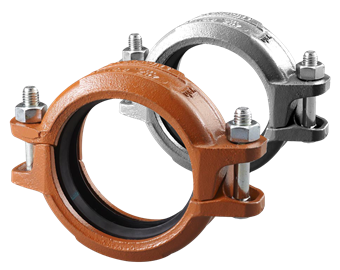

SHURJOINT SJTZ074PE Model Z07 Heavy Duty Rigid Coupling

Product Description

The SHURJOINT Model Z07 (SJTZ074PE) is designed for piping systems that require a rigid connection. This heavy-duty rigid coupling features an angle-pad design that allows the coupling housings to slide along the bolt pads when tightened. This creates an offset clamping action that provides a rigid joint resistant to flexural and torsional loads. It is suitable for valve connections, mechanical rooms, fire mains, and long straight runs.

• Rigid coupling with grooved ends.
• Constructed from ductile iron with an EPDM gasket for sealing.
• Complies with ANSI B31.1, B31.9, and NFPA 13 standards.

Product Highlights

This coupling is constructed from ductile iron and finished in orange paint. It effectively seals the connection with its EPDM gasket.

Product Information

Standard Information

• MPN: SJTZ074PE
• Brand: SHURJOINT

Technical Specifications

• Series: Z07
• Fitting Type: Coupling
• End Style: Grooved
• Size: 4 inches
• Nominal Diameter: DN 100
• Outer Pipe Diameter: 114.3 mm
• Material: Ductile Iron
• Body Material: Cast Iron
• Gasket Material: EPDM
• Operating Temperature: -29 °F to 230 °F
• Max Operating Pressure Liquid: 754 psi
• Color: Orange
• Length: 2.13 inches
• Certifications: cULus Listed, FM Approved, LPCB Certified, NFPA 13, VdS Approved, UL Listed, ULC Listed
