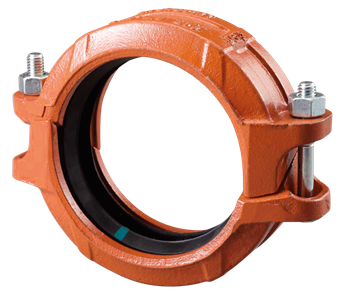

Shurjoint SJTZ056PEA Rigid Coupling FF 6 Pre-Lube Orange

Product Description

The Shurjoint SJTZ056PEA is a rigid coupling suitable for moderate pressure piping applications. It is often used for fire mains, long straight runs, and valve connections. The design features angle-pad technology, allowing the coupling to slide along bolt pads when tightened. This results in an offset clamping action, providing a rigid joint that minimizes movement in extended runs.

• Angle-pad design for enhanced stability.
• Prevents 'snaking' in long piping setups.
• Easy swing-over installation by removing one bolt.

Product Highlights

This coupling's design supports installation needs as per ANSI B31.1, B31.9, and NFPA 13 standards.

Product Information

Standard Information

• Brand: Shurjoint
• Model: Z05

Technical Specifications

• MPN: SJTZ056PEA
• Nominal Diameter Connection 1: DN 150
• Nominal Diameter Connection 2: DN 150
• Outer Pipe Diameter Connection 1: 168.3mm (6.63 inches)
• Outer Pipe Diameter Connection 2: 168.3mm (6.63 inches)
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: EPDM
• Length: 53mm (2.09 inches)
• Max Operating Pressure: 348 psi
• Medium Temperature (continuous): -38°C to 100°F
