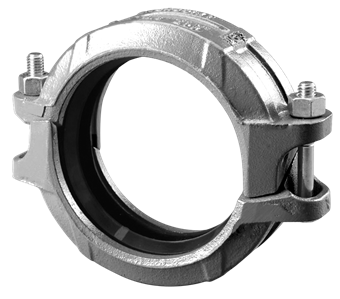

SHURJOINT SJTZ056GEA Rigid Coupling 6 inch

Product Description

The SHURJOINT SJTZ056GEA is a rigid coupling designed for moderate pressure piping services. It is suitable for various applications such as fire mains, straight runs, and valve connections. The angle-pad design enables the coupling housings to slide along the bolt pads when tightened, creating an offset clamping action. This feature provides a rigid joint that effectively resists snaking in long, straight runs.

• Angle-pad design enhances joint rigidity.
• Resists snaking in extended piping runs.
• Groove connection type allows for easy installation.

Product Highlights

The SHURJOINT SJTZ056GEA is built to withstand demanding conditions, ensuring reliability for professionals in plumbing, HVAC, and fire protection.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ056GEA

Technical Specifications

• Nominal Diameter Connection 1: DN 150
• Nominal Diameter Connection 2: DN 150
• Outer Pipe Diameter Connection 1: 6.63 inches
• Outer Pipe Diameter Connection 2: 6.63 inches
• Material: Cast iron (ASTM A536 65-45-12)
• Surface Protection: Hot-dip galvanized
• Max Operating Pressure: 348 psi
• Max Medium Temperature: 100 °F
• Length: 2.09 inches
• Shape: Straight
