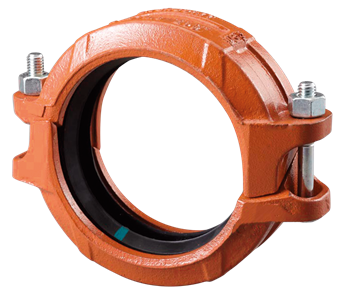

Shurjoint SJTZ054PEA Rigid Coupling 4-inch

Product Description

The Shurjoint Model SJTZ054PEA is a rigid coupling used for piping services including fire mains, straight runs, and valve connections. This coupling features an angle-pad design which allows the housing to slide along the bolt pads during the tightening process. This creates an offset clamping action that results in a secure connection and prevents movement in long piping runs. The design allows for quick installation by removing just one bolt.

• Angle-pad design provides a rigid joint.
• Resists movement in long, straight runs.
• Allows for fast installation.

Product Highlights

This rigid coupling is essential for ensuring reliable connections in high-pressure piping applications.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJTZ054PEA

Technical Specifications

• Nominal Diameter: 4 inches
• Outer Pipe Diameter Connection 1: 4.5 inches
• Connection Type: Groove coupling
• Material: Cast iron (ASTM A536 65-45-12)
• Max Operating Pressure Liquid: 508 psi
• Max Medium Temperature: 100 °F
• Length: 2.13 inches
• Color: Orange
