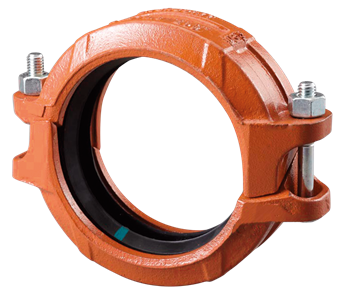

SHURJOINT SJTZ052PEA Model Z05 Rigid Coupling

Product Description

The SHURJOINT Model Z05, designated as MPN SJTZ052PEA, is a rigid coupling suitable for moderate pressure piping services. It is ideal for applications like fire mains and valve connections. The coupling features an angle-pad design that allows for a unique offset clamping action, ensuring a strong connection in long, straight runs.

• Angle-pad design for a rigid joint
• Resists movement in long, straight runs
• Fast installation by removing one bolt

Product Highlights

The Z05 coupling is designed to provide secure and stable connections in various piping systems.

Product Information

Standard Information

• Model: Z05E-A
• Brand: SHURJOINT

Technical Specifications

• MPN: SJTZ052PEA
• Nominal Diameter: 2
• Connection Type: Groove (coupling)
• Material: Cast iron (ASTM A536 65-45-12)
• Maximum Operating Pressure: 508 psi
• Maximum Medium Temperature: 100 °F
• Length: 1.85 inches
• Outer Pipe Diameter: 2.37 inches
