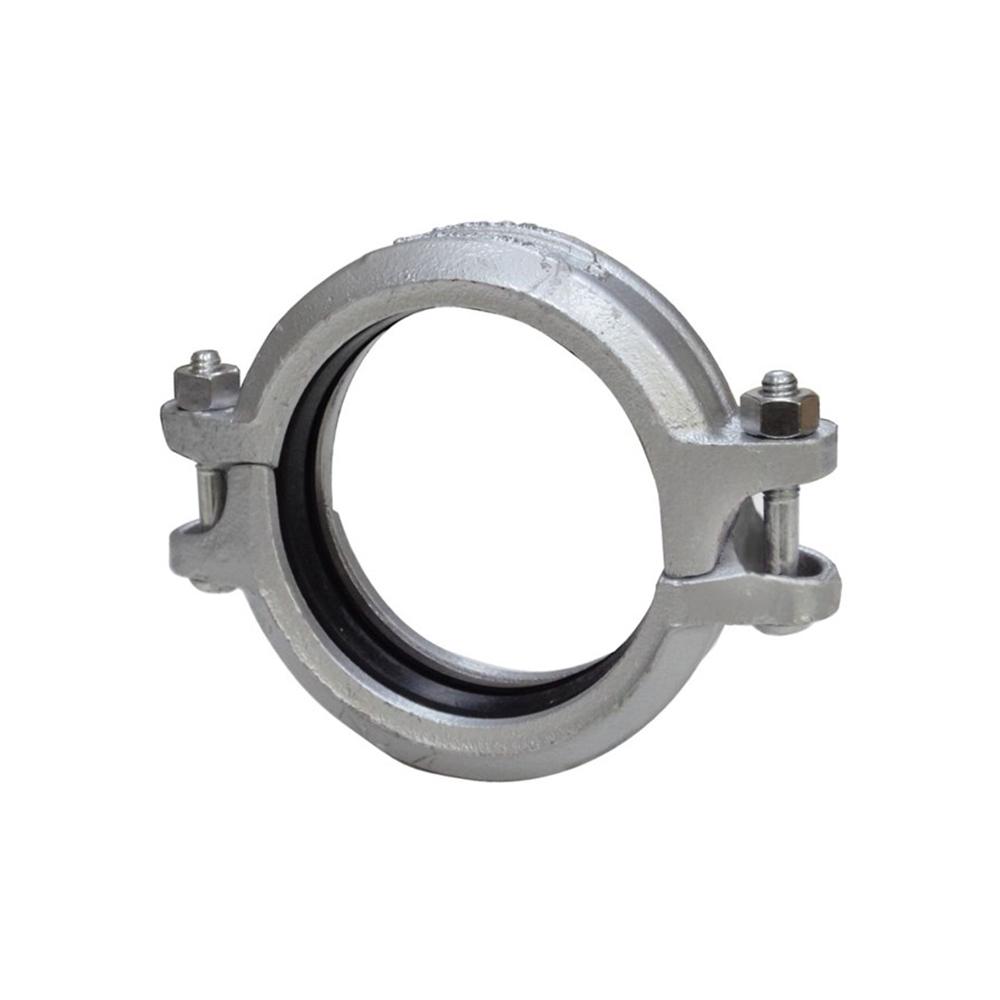

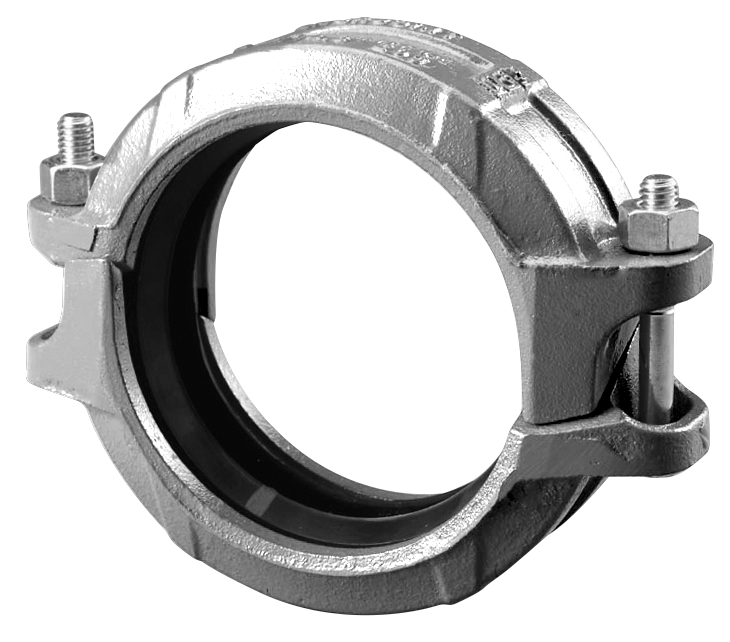

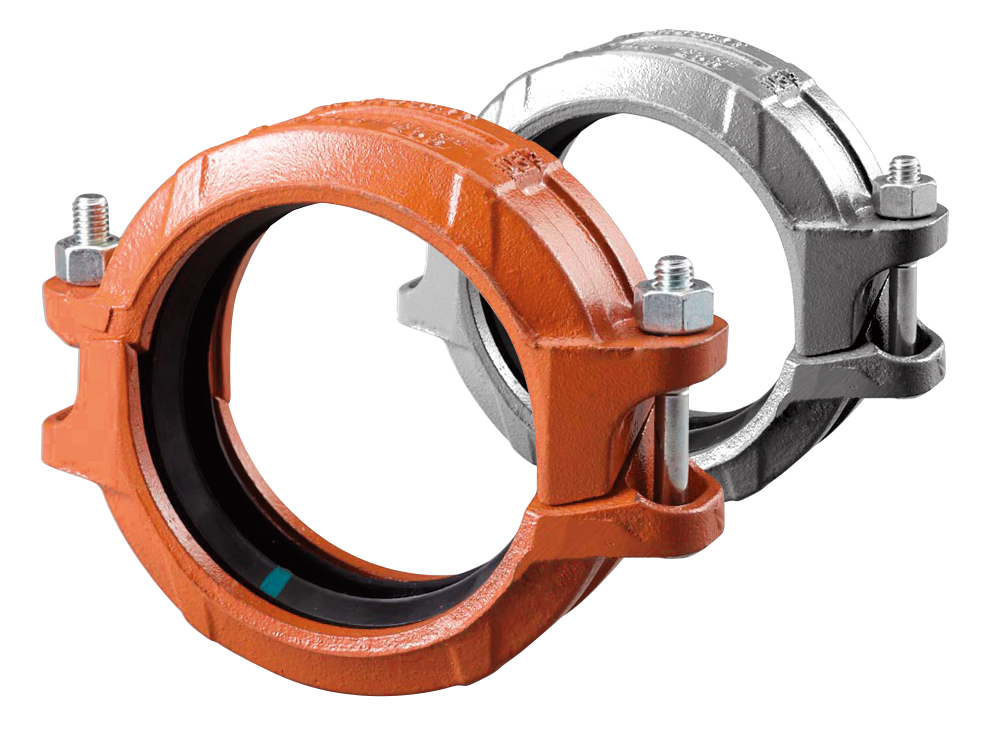

Shurjoint SJTZ052GEA VSH Shurjoint Rigid Coupling FF 2 Pre-lube Orange

Product Description

The Shurjoint SJTZ052GEA is a rigid coupling that utilizes an angle-pad design. This design is intended for moderate pressure piping services such as fire mains, long straight runs, and valve connections. The unique angle-pad feature allows the coupling housings to slide along the bolt pads during tightening, which results in an offset clamping action. This ensures a rigid joint and helps to prevent snaking in long runs of piping. It is specifically designed for grooved piping systems, allowing for secure and leak-free connections. Installation is made simple with a 'swing-over' method, only requiring the removal of one bolt.

• Features an angle-pad design for improved joint performance.
• Suitable for applications such as heating, cooling, air compression, sprinkler systems, and vacuum services.
• Complies with ANSI B31.1, B31.9, and NFPA 13 standards.

Product Highlights

Robust construction suited for a variety of moderate pressure applications and easy installation methods.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJTZ052GEA

Technical Specifications

• Article: VSH Shurjoint rigid coupling FF 2 pre-lube orange
• Article Number: SJTZ052PEA
• Size: 2
• Connection Type: Groove (coupling)
• Sealing Material: EPDM
• Material: Cast iron (ASTM A536 65-45-12)
• DN1: 2.37
• DN2: 2.37
