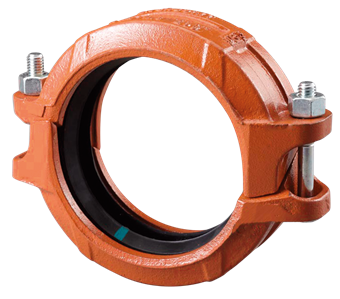

Shurjoint SJTZ0525PEA Rigid Coupling

Product Description

The Shurjoint SJTZ0525PEA rigid coupling is designed for moderate pressure piping services. This coupling features an angle-pad design that accommodates fire mains, long straight runs, and valve connections. The coupling's unique design allows the housings to slide along the bolt pads when tightened, ensuring a rigid joint that prevents 'snaking' in extended straight runs.

• Two-part fitting with groove connections.
• Includes EPDM gasket for effective sealing.
• Engineered for high operating pressures.

Product Highlights

Ideal for use in a variety of piping applications requiring reliable connections under pressure.

Product Information

Standard Information

• Brand: Shurjoint
• Model: SJTZ0525PEA

Technical Specifications

• Connection Type: Ribbing groove (groove coupling)
• Nominal Diameter: DN 65
• Outer Pipe Diameter: 73 mm
• Material: Cast iron
• Material Quality: ASTM A536 Grade 65-45-12
• Max Operating Pressure: 508 psi
• Medium Temperature (Max): 100 °F
• Length: 47 mm
