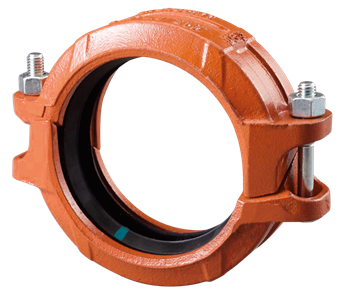

SHURJOINT SJTZ0515PEA Rigid Coupling, 1-1/2, Groove Connection

Product Description

The SHURJOINT SJTZ0515PEA is a rigid coupling designed for piping applications that require moderate pressure. It is particularly suitable for fire mains, straight runs, and valve connections. The coupling features an angle-pad design that allows the housing to slide along the bolt pads when tightened. This creates a rigid joint that prevents movement in long, straight runs. Compliance with ANSI B31.1, B31.9, and NFPA 13 standards ensures reliability in various installations. A single bolt can be removed for quick swing-over installation.

• Angle-pad design for secure connections.
• Moderate pressure applications.
• Quick installation with one-bolt removal.

Product Highlights

This coupling provides a robust solution for applications demanding durability and ease of installation.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ0515PEA

Technical Specifications

• Product Type: Z05E-A
• Connection Type: Groove (coupling)
• Nominal Diameter Connection 1: DN 40
• Outer Pipe Diameter Connection 1: 1.9 inches
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: EPDM
• Maximum Operating Pressure: 508 psi
• Maximum Medium Temperature: 100 °F
• Length: 1.81 inches
• Bend Angle: 0 °
