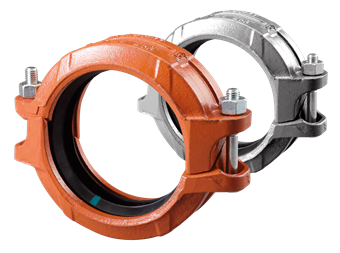

Shurjoint SJTZ05125GEA Model Z05 Rigid Coupling

Product Description

The Shurjoint Model Z05 SJTZ05125GEA is a rigid coupling designed for moderate pressure piping applications. This coupling uses an angle-pad design that supports fire mains, valve connections, and straight runs. The innovative design allows the housing to slide during tightening for an effective clamping action that minimizes 'snaking' in longer installations.

• Rigid coupling for moderate pressure piping systems.
• Angle-pad design for strong clamping.
• Meets ANSI B31.1, B31.9, and NFPA 13 standards.

Product Highlights

The Shurjoint Model Z05 is compatible with a swing-over installation for quick adjustments and maintenance. It is crafted to endure demanding conditions while providing reliable and secure connections in piping systems.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJTZ05125GEA

Technical Specifications

• Size: 1 1/4 inches galvanized
• Dimensions: 1.81 x 4.02 x 2.60 inches
• Weight: 1.41 lb
• Material: Cast iron (ASTM A536 65-45-12)
• Finishing: Hot dip galvanized, varnished
• Connection Type: Groove (coupling)
• Medium Temperature (maximum): 100 °F
• Supported Standards: ANSI, NFPA
