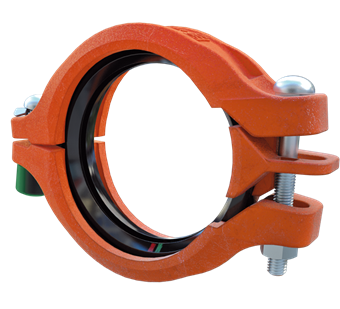

Shurjoint SJTM0725PEHM 2-1/2 inches M07 QIC Rigid PTD EHM

Product Description

The SHURJOINT SJTM0725PEHM is a ready to install rigid coupling for general piping applications where rigidity is required. The M07 includes two identical housing segments and a fully constrained wedge. Proper installation requires the tightening of only one bolt/nut. The hinge bolt/nut is factory pre-set and requires no adjustment.

• 1-bolt design: super fast installation
• Patent pending wedge design
• Applications include valve connections, mechanical rooms, risers and long straight runs.

Product Highlights

The Shurjoint Model M07 rigid coupling is designed for valve connections, mechanical rooms, risers and long straight runs. It features a 1-bolt design for super fast installation and a patent pending wedge design.

Product Information

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: SJTM0725PEHM
• Country of Origin: Taiwan

Technical Specifications

• DN1: 2-1/2"
• Material connection 1: Cast iron
• Material quality connection 1: ASTM A536 Grade 65-45-12
• Surface protection connection 1: Lacquered
• Surface treatment connection 1: Other
• Material connection 2: Cast iron
• Material quality connection 2: ASTM A536 Grade 65-45-12
• Surface protection connection 2: Lacquered
• Surface treatment connection 2: Other
• Shape: Straight
• Model: 2-part
• Reducing: No
• Eccentric: No
• System specific: No
• Nominal diameter connection 1: DN 65
• Outer pipe diameter connection 1: 73mm
• Outer pipe diameter connection 1 (imperial): 2.87"
• Connection 1: Ribbing groove (groove coupling)
• Nominal diameter connection 2: DN 65
• Outer pipe diameter connection 2: 73mm
• Outer pipe diameter connection 2 (imperial): 2.87"
• Connection 2: Ribbing groove (groove coupling)
• Main colour fitting: Orange
• Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
• With buffer stud: No
• Length: 48mm
• Length (imperial): 1.89"
• Length of connection 1: 24mm
• Length of connection 1 (imperial): 0.94"
• Working length connection 1: 1.9mm
• Working length connection 1 (imperial): 0.07"
• Length of connection 2: 24mm
• Length of connection 2 (imperial): 0.94"
• Working length connection 2: 1.9mm
• Working length connection 2 (imperial): 0.07"
• Max. operating pressure at 20 00 C: 52bar
• Max. operating pressure at 20 00 C (imperial): 754.2psi
• With sealing rings/gaskets: No
• Capped: No
• With connection indicator: No
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Manufacturer: Shurjoint
• Brand: SHURJOINT
• Part #: 441109
• MPN: SJTM0725PEHM
• Domestic/Import: Import
• End Style: Grooved
• Finish: Painted
• Fitting/Connector Type: Coupling
• Material: Ductile Iron
• Nominal Size: 2-1/2 in
• Pressure Rating: 754.2 psi
• Series: Shurjoint
• Temperature Rating: -29.2 to 249.8 deg F
• materials: cast iron (ASTM A536 65-45-12)
• finishing: hot dip galvanized, varnished
• sealing: EPDM
• product group: fittings (demountable)
• product type: M07EHM
