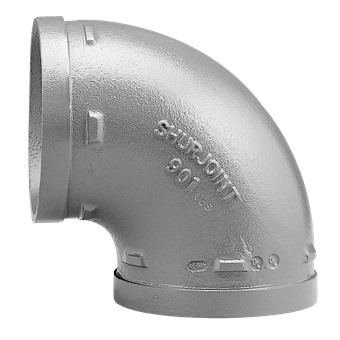

Shurjoint SJT9014G 90 Degree Short Radius Elbow

Product Description

The Shurjoint SJT9014G is a 90-degree short radius elbow fitting. This product is made from ductile iron and meets the ASTM A536 Grade 65-45-12 standard. It features grooved ends, making it suitable for various applications.

• Constructed from ductile iron per ASTM A536 Gr. 65-45-12
• Designed for fire protection applications and general service
• Complies with pressure ratings of Shurjoint Model 7707 couplings

Product Highlights

This elbow fitting is ideal for connecting pipes in tight spaces, supporting efficient flow in piping systems.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT9014G

Technical Specifications

• Angle: 90 degrees
• Material: Ductile iron
• Material Quality: ASTM A536 Grade 65-45-12
• Surface Protection: Hot-dip galvanized
• Bend Radius: 4.5 inches (114.3 mm)
• Nominal Diameter Connection 1: DN 100
• Outer Pipe Diameter Connection 1: 4.5 inches (114.3 mm)
• Connection 1: Groove
• Max. Operating Pressure at 20 °C: 20.1 bar (291.53 psi)
• FM Quality Mark: Yes
• LPCB Quality Mark: Yes
