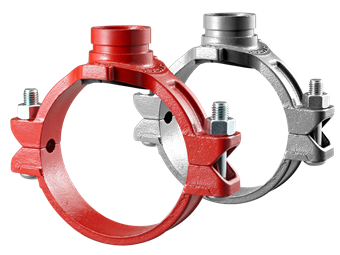

Shurjoint SJT7722625PE Mechanical Tee

Product Description

The Shurjoint Model SJT7722625PE is designed for use as a mechanical tee that provides a grooved-end branch outlet when attached to a pipe with a cut hole. This product simplifies installations by eliminating the need for welding or multiple fittings.

• Constructed with ductile iron housing segments for durability.
• Features a grade E EPDM rubber molded gasket for effective sealing.
• Includes plated track bolts and nuts for secure installation.

Product Highlights

This mechanical tee is suitable for various applications and offers ease of installation and maintenance.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7722625PE

Technical Specifications

• Series: Shurjoint
• Product Type: 7722E
• Shape: Tapping saddle
• Connection Type: Groove (fitting), hole
• Sealing Material: EPDM
• Materials: Cast iron (ASTM A536 65-45-12)
• Finishing: Varnished, hot dip galvanized
• Nominal Diameter: DN 65
• Suitable for Pipe Diameter: DN 150
• Outer Pipe Diameter: 73mm
• Max Operating Pressure Liquid: 290 psi
• Medium Temperature (continuous): -29.2°F - 230°F
• Length of Connection 1: 140mm
• Width: 101mm
• Country of Origin: Taiwan
