Shurjoint SJT7721425PE Model 7721 Mechanical Tee

Product Description

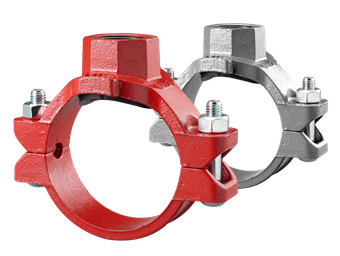

The Shurjoint Model 7721 Mechanical Tee is an essential component for pipe installations. It allows for easy mounting on a hole cut pipe and provides a threaded branch outlet. This design eliminates the need for welding or multiple fittings, simplifying the installation process. It consists of upper and lower ductile iron housing segments along with a grade E EPDM rubber molded gasket. Supplied with a painted finish, this model is suitable for various applications.

• Provides a fast and easy mid-pipe threaded branch outlet.
• Eliminates welding or the use of multiple fittings.
• Features ductile iron housing segments and an EPDM rubber gasket.

Product Highlights

Ideal for HVAC and plumbing applications, this mechanical tee connects easily and effectively. Its robust construction ensures long-lasting use.

Product Information

Standard Information

• Brand: Shurjoint
• Product Type: 7721E

Technical Specifications

• Article Number: SJT7721425PE
• Size: 4xFNPT2 1/2 orange
• Materials: Cast iron (ASTM A536 65-45-12)
• Sealing: EPDM
• Connection Type: FPT - female thread conical (NPT)
• Nominal Diameter: DN 65
• Max Operating Pressure Liquid: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 112mm
• Length of Connection 1: 111mm
• Working Length Connection 1: 82mm
• Country of Origin: Taiwan
