SHURJOINT SJT770642PE Model 7706 Reducing Coupling

Product Description

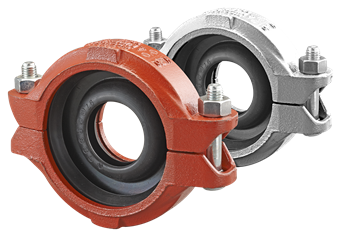

The SHURJOINT Model 7706 Reducing Coupling is designed to facilitate direct reduction on piping systems. This product eliminates the need for additional reducers and couplings. It consists of two identical housing segments, equipped with an EPDM rubber gasket, and comes with plated track bolts and nuts. The unique rubber gasket design prevents smaller pipes from slipping into larger pipes during vertical installations. Housing segments come with a painted finish.

• Facilitates direct reduction without extra fittings
• Includes EPDM rubber gasket and plated bolts
• Suitable for grooved end style connections

Product Highlights

Product Information

Standard Information

• Manufacturer: SHURJOINT
• Fitting Type: Reducing Coupling

Technical Specifications

• Manufacturer Part Number: SJT770642PE
• End Style: Grooved
• Size: 4 X 2 inches
• Series: 7706
• Material: Cast iron (ASTM A536 65-45-12)
• Gasket Material: EPDM
• Operating Temperature: -29 °F - 230 °F
• Shape: Straight
• Reducing: Yes
• Quality Marks: FM Approved, LPCB Certified, cULus Listed, VdS Approved
• Length: 7.8 inches
