Shurjoint SJT7706252PE Reducing Coupling 2-1/2 x 2

Product Description

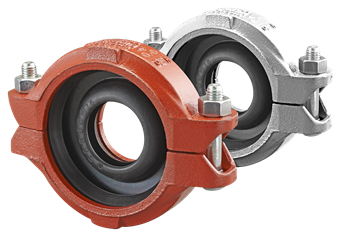

The Shurjoint SJT7706252PE is a model 7706 reducing coupling designed for connecting pipes of different diameters. This coupling features a grooved end style for simple installation. Made from ductile iron, it has a durable orange coating. It uses an EPDM gasket to create a reliable seal. This component allows for direct reduction in a piping system, which eliminates the need for extra fittings.

• Grooved end style for easy connection.
• Constructed from ductile iron with orange coating.
• EPDM gasket ensures a dependable seal.

Product Highlights

The Shurjoint SJT7706252PE is essential for creating secure connections between differing pipe sizes.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7706252PE

Technical Specifications

• Size: 2-1/2 x 2 inches
• Fitting/Connector Type: Reducing Coupling
• End Style: Grooved
• Series: 7706
• Material: Ductile Iron
• Material Quality Connection 1: ASTM A536 Grade 65-45-12
• Material Quality Connection 2: ASTM A536 Grade 65-45-12
• Sealing: EPDM
• Shape: Straight, reducer
• Connection 1: Ribbing groove (groove coupling)
• Connection 2: Ribbing groove (groove coupling)
• Operating Temperature (Min): -29 °F
• Operating Temperature (Max): 230 °F
• Length: 1.89 inches
• Certifications: cULus Listed, FM Approved
• Color: Orange
