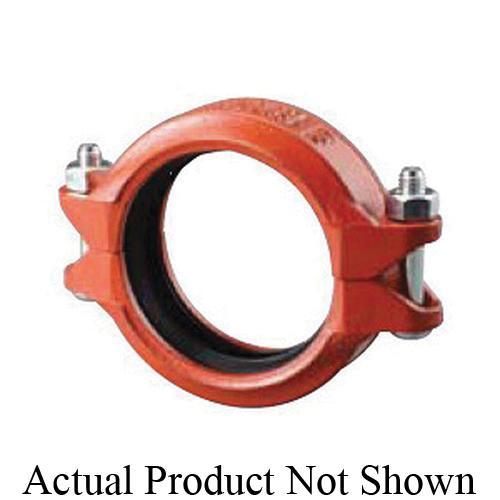

Shurjoint SJT770525PE Model 7705 Standard Flexible Coupling 2-1/2 in Nominal Thread End Style

Product Description

The Shurjoint SJT770525PE Model 7705 is a standard flexible coupling designed for general piping applications under moderate pressure. This coupling is effective in managing misalignment, distortion, thermal stress, vibration, and noise, making it suitable for various piping systems. It can also accommodate curved layouts. The coupling consists of two ductile iron housing segments, an EPDM rubber gasket, and plated track bolts and nuts. Standard finishes include painted options in orange or RAL3000 red, with additional finishes such as hot dipped zinc galvanized and custom epoxy coatings available.

• Suitable for 2.5-inch nominal pipe size
• Temperature range from -30 to 230 degrees Fahrenheit
• Resistant to thermal stress and seismic activity

Product Highlights

This coupling provides flexibility and durability for various piping needs.

Product Information

Standard Information

• Manufacturer: Shurjoint
• Part Number: 1525

Technical Specifications

• Series: Model 7705
• Color: Orange/Red
• Material: Ductile Iron
• End Style: Thread
• Nominal Size: 2-1/2 inches
• Length: 5.59 inches
• Thickness: 1.85 inches
• Dimensions: 3.9 inches in height
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Fitting/Connector Type: Coupling
