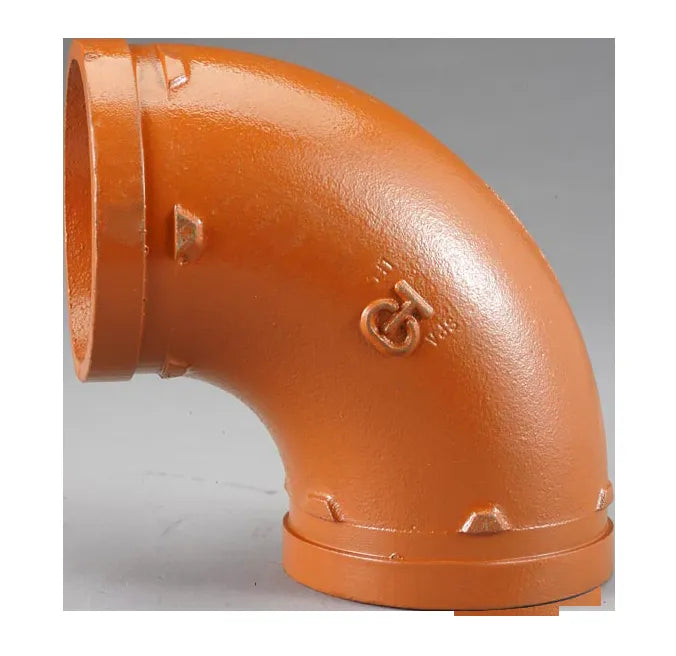

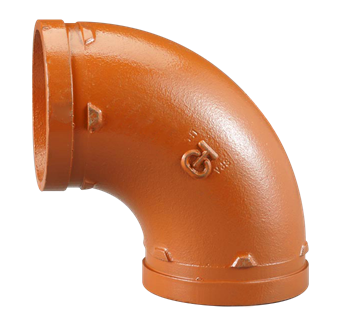

SHURJOINT SJT711015P 90-Degree Elbow

Product Description

The SHURJOINT SJT711015P is a 90-degree elbow fitting designed for grooved-end pipe connections. It is made from ductile iron and meets ASTM A536 Gr. 65-45-12 standards. This elbow is suitable for various applications, such as heating, cooling, compressed air, and sprinkler systems. It effectively connects two pipes at a right angle, maintaining integrity under pressure.

• Constructed from ductile iron per ASTM A536 Gr. 65-45-12
• Features grooved ends for secure connections
• Applicable for both demountable fittings and standard pressure ratings

Product Highlights

Ideal for use in HVAC, plumbing, and fire protection systems.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT711015P

Technical Specifications

• Series: Shurjoint Series
• Product Type: Elbow
• Angle: 90 degrees
• Size: 1.5 inches
• Nominal Diameter Connection 1: DN 40
• Nominal Diameter Connection 2: DN 40
• Outer Pipe Diameter Connection 1: 1.9 inches
• Outer Pipe Diameter Connection 2: 1.9 inches
• Connection Type: Groove
• Material: Ductile Iron
• Surface Protection: Lacquered
• Bend Radius: 1.81 inches
• Length: 3.74 inches
• FM Quality Mark: Yes
• UL Quality Mark: Yes
• VdS Quality Mark: Yes
