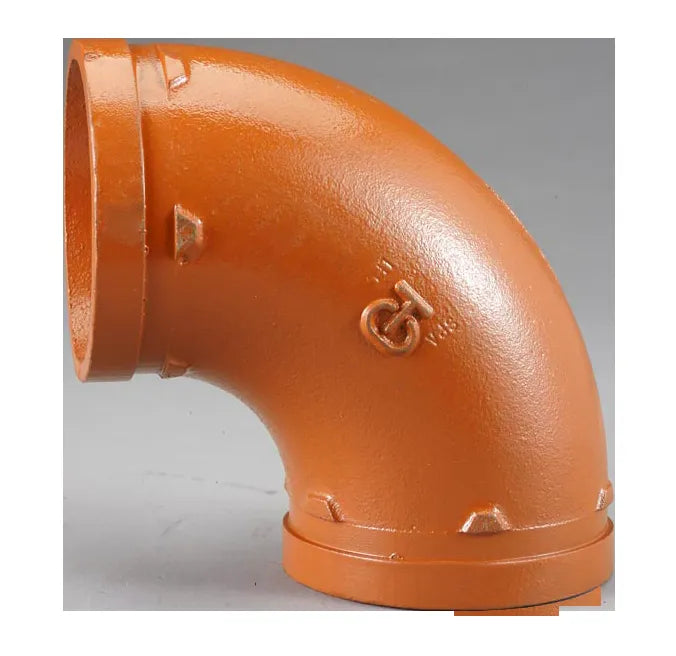

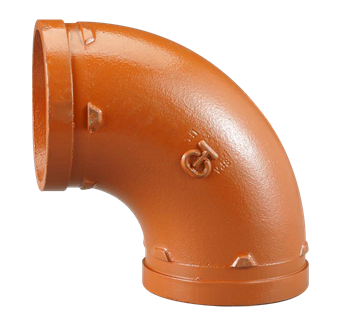

SHURJOINT SJT7110125P 90 Degree Elbow

Product Description

The SHURJOINT SJT7110125P is a 90-degree elbow fitting made for grooved-end connections. This fitting uses ductile iron or cast iron complying with ASTM A536 Gr. 65-45-12 or ASTM A395 Grade 65-45-15 standards. It is designed for compatibility with Shurjoint Model 7707 couplings. The elbow features a varnished finish and has a one-part construction.

• Constructed from ductile or cast iron.
• Designed for grooved end connections.
• Available in orange/red color.

Product Highlights

This elbow fitting is strong and reliable, ideal for various piping applications.

Product Information

Standard Information

• Brand: SHURJOINT
• Fitting Type: 90 Degree Elbow

Technical Specifications

• MPN: SJT7110125P
• Material: Ductile Iron
• Angle: 90 degrees
• End Style: Grooved
• Series: 7110
• Size: 1 1/4 inches
• Color: Orange
• Finish: Varnished
• Outer Pipe Diameter Connection 1: 1.66 inches
• Outer Pipe Diameter Connection 2: 1.66 inches
• Length Of Connection 1: 2.76 inches
• Length Of Connection 2: 2.76 inches
• Dimensions: 3.62 x 1.66 x 3.62 inches
• Weight: 1.10 lbs
