Shurjoint sjt704125pe Flange Adapter Class 150 2.5 in

Product Description

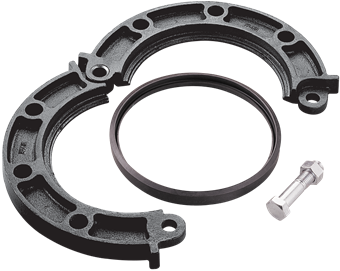

The SHURJOINT sjt704125pe is a grooved flange adapter designed to connect a grooved piping system directly to an ASTM Class 150 flanged component. Part of the 7041AE product family, this two-segment adapter uses a specially engineered EPDM rubber gasket to create a reliable transition between grooved and flanged systems. Each unit ships complete with the EPDM gasket, plated track bolts, and nuts. The adapter is sized for 2.5-inch pipe and is finished in orange for easy field identification. It is installed by licensed pipefitters and mechanical contractors working on commercial and industrial piping systems.

This flange adapter is suited for applications where a grooved pipe run must terminate at or connect to a Class 150 flanged valve, pump, strainer, or other flanged equipment. The two-segment housing design reduces installation time compared to traditional flanged connections and eliminates the need for a full companion flange on the grooved side. Typical installations include HVAC hydronic systems, fire protection mains, and industrial process piping where a flanged transition point is required.

Key Features

• Transitions from a grooved pipe end directly to an ASTM Class 150 flange face without a companion flange
• Two-segment housing design allows fast, single-adapter installation
• EPDM rubber gasket included, suitable for water and hydronic service
• Plated track bolts and nuts included for complete out-of-box assembly
• Orange finish provides visual identification in the field
• Sized for 2.5-inch grooved pipe

Compatibility

Designed as an OEM-style grooved-to-flange transition adapter for 2.5-inch grooved piping systems connecting to ASTM Class 150 flanged components.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor in accordance with applicable mechanical and plumbing codes. Depressurize and drain the piping system completely before installing or servicing this adapter. Verify that the mating flange face meets ASTM Class 150 dimensional requirements before assembly. Torque fasteners evenly in a cross pattern per the manufacturer's standard procedure using appropriate hand tools.

Technical Specifications

• Pipe Size: 2.5 inches
• Flange Class: ASTM Class 150
• Connection Type: Groove x Flange
• Gasket Material: EPDM rubber
• Housing Segments: 2
• Finish/Color: Orange (plated track bolts and nuts)
• Weight: 5.14 pounds
• Dimensions (L x W x H): 7.01 x 7.01 x 0.87 inches

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: sjt704125pe
