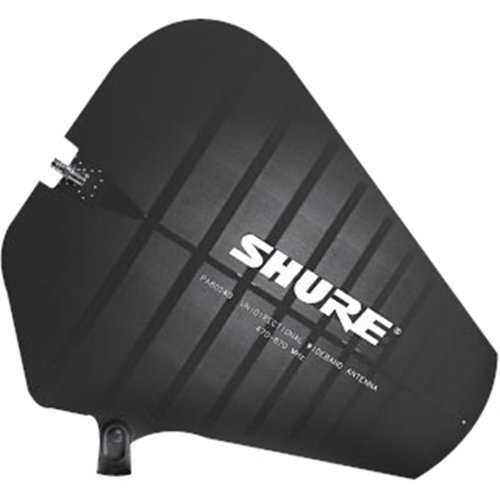

Shure Brothers Inc PA805SWB Passive Directional Antenna

Product Description

The SHURE BROTHERS INC PA805SWB is a passive directional antenna covering the 470 to 952 MHz frequency range. Passive antennas require no external power source, making them straightforward to deploy in wireless microphone systems where signal pickup and directionality are priorities. The PA805SWB is designed for use with compatible wireless receiver systems, helping to improve reception by focusing antenna gain in a specific direction. Audio-visual technicians, sound engineers, and live event professionals are the primary installers of this component.

This antenna is suited for applications in live sound reinforcement, broadcast environments, houses of worship, corporate AV installations, and theatrical productions. The wide frequency range of 470 to 952 MHz makes it compatible with a broad selection of UHF wireless systems operating within that spectrum. It ships as a single unit and is categorized as a microphone accessory.

Key Features

• Passive design requires no external power source
• Directional pattern focuses reception for improved signal pickup
• Wide UHF frequency coverage from 470 to 952 MHz
• Sold as a single unit

Compatibility

Designed as an OEM-style accessory for UHF wireless microphone receiver systems operating in the 470 to 952 MHz frequency range. Consult your receiver documentation to confirm antenna port compatibility before installation.

Installation Notes

Installation is typically performed by licensed AV technicians or experienced sound engineers. Power down the wireless receiver system before connecting or disconnecting antenna cables. Follow the manufacturer guidelines for antenna placement and cable run lengths to minimize signal loss. Refer to applicable local codes and FCC regulations governing UHF wireless operation in your region.
