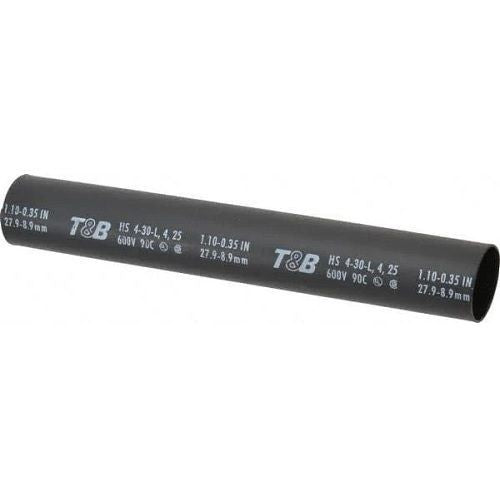

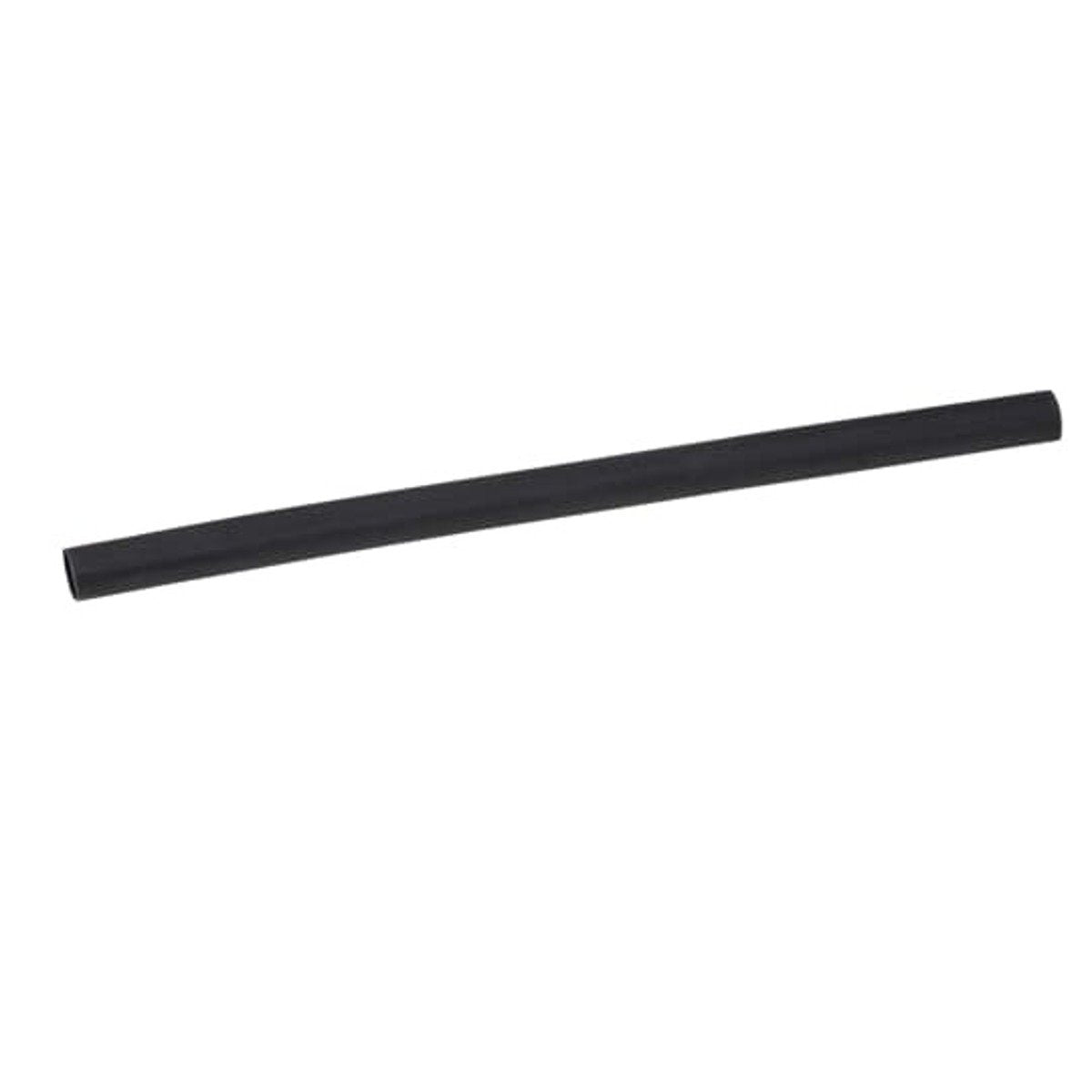

Shrink-Kon HS4-30L Heavy-Wall Heat-Shrinkable Tubing 600 V

Product Description

The SHRINK-KON HS4-30L is a heavy-wall, heat-shrinkable tubing designed for cable ranges 1 to 3/0 AWG. This tubing provides insulation and abrasion protection for connections and terminations. It is made of thermally stabilized, cross-linked polyolefin, enabling a recovered wall thickness greater than the replaced cable jacket. It has a voltage rating of 600 V and continuous use up to 90 degrees.

• Cable size compatibility: 1 to 3/0 AWG
• Expanded diameter: 1.1 inch
• Voltage rating: 600 V

Product Highlights

Heavy-wall heat shrinkable tubing made of cross-linked polyolefin with thermoplastic adhesive liner, providing insulation, abrasion protection, and environmental sealing.

Product Information

Standard Information

• Brand: SHRINK-KON
• Manufacturer Part Number: HS4-30L
• Country of Origin: Canada

Technical Specifications

• Catalog Number: HS4-30L
• Manufacturer: ABB - Installation Products
• Brand: Shrink-Kon
• Country of Origin: Canada
• Made in USA: No
• UPC: 786210872018
• GTIN: 00786210872018
• Item Type: Heavy-Wall Heat Shrinkable Tubing
• Length: 9 in
• Voltage Rating: 600 V
• Cable Size: 1 to 3/0 AWG
• Wall Type: Heavy
• Shrink Temperature: 120 Deg C
• Material: Thermoplastic Adhesive Lined Cross Linked Polyolefin
• Shrink Ratio: 3:1
• Minimum Expanded Diameter: 1.1 Inch
• Maximum Recovered Diameter: 0.35 Inch
• Thickness: 0.12 Inch
• Temperature Rating: -55 to 110 Deg C
• Approval: UL 486D, CSA C22.2
• Applicable Standard: ANSI C119.1, ICEA
• Inner Diameter Expanded: 1.1 in
• Inner Diameter Recovered: 0.35 in
• Series: HS
• Wall Thickness Recovered: 0.12 in
• Wire Size: 3 to 1 AWG
• Standard & Approvals: UL Listed, CSA Certified, ANSI, ICEA, NEMA, RoHS Compliant
• Operation temperature: -67-+230 °F
• Nominal Recovered Wall Thickness (Inches): 0.12
