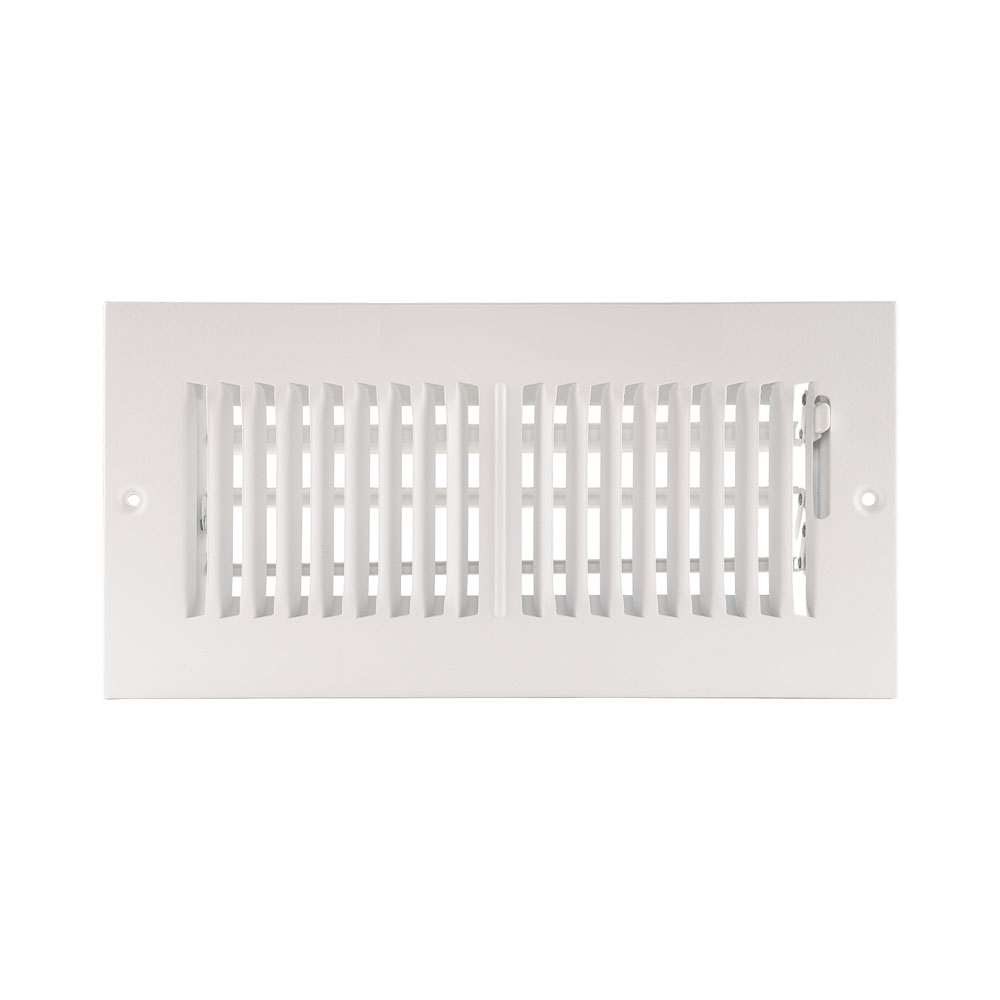

Shoemaker 850-0-10X6 10 x 6 Step Down Diffuser

Product Description

The SHOEMAKER 850-0-10X6 is a step-down diffuser from the 850 series, designed for homes, offices, stores, and many other commercial applications. Measuring 10 x 6 inches, it features 1/3 inch grille spacing and 2-way deflection. It delivers 326 cfm at 1200 fpm. This register is suitable for ceiling or sidewall applications.

• Two-way register with stiffened 1/2 in fan-shaped louvers for silent operation
• Lever operated multi-shutter damper
• Countersunk-mounting holes for flush appearance with color matching Phillips posidrive screws

Product Highlights

The Shoemaker 850-0-10X6 vent cover is designed to conceal an air duct opening. It is made of durable, high-quality construction that makes it suitable for long-term use.

Product Information

Standard Information

• Brand: SHOEMAKER
• Manufacturer Part Number: 850-0-10X6
• Country of Origin: United States

Technical Specifications

• Series: 850
• Size: 10 x 6 in
• Grille Spacing: 1/3 in
• Deflection Type: 2-Way
• CFM Rating: 326 cfm at 1200 fpm
• Area: 0.271 sq-ft
• Length: 2 in
• Width: 11-5/8 in
• Height: 7-5/8 in
• Material: Steel
• Finish: Powder-Coated
• Brand: Shoemaker
• MPN: 850-0-10X6
• Country of Origin: United States
• Grille Type: Stamped
• GRD Type: Registers
• Airflow Pattern: 2-Way
• Safety Standards: California Prop 65
• Mount Type: Ceiling/Wall
• Product: Register
• Shape: Rectangle
• Style: 2 Way
• Compatible Product: Central Air Conditioner, Central Furnace
• Compatible Brand: Shoemaker
• Model: 10 x 6 White
• Item Height: 6 in
• Item Weight: 1 lb
