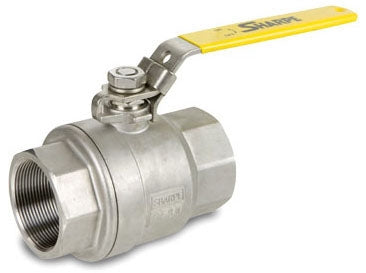

Sharpe SV50M76004 Ball Valve Full Port Locking Lever Handle

Product Description

Explore the efficiency of the Sharpe SV50M76004 Ball Valve, designed for robust industrial and automation control systems. This stainless steel valve ensures durability and precision with its full port and locking lever handle mechanism.

• Optimized for tight sealing with PTFE seats and seals
• High-pressure capability up to 1000 PSI WOG/CWP and 150 PSI SWP
• Easy operation with a blowout-proof stem and locking lever handle

Product Highlights

The Sharpe SV50M76004 is built for demanding environments with a temperature rating up to 400 degrees Fahrenheit and an end-to-end distance of 2.36 inches. Its full port design allows for maximum flow efficiency, ensuring no compromise on performance.

Product Information

Standard Information

• ASME Standards: Complies with ASME B16.11 and B16.34
• Flow Rate: 24 Cv

Technical Specifications

• Body Material: ASTM A351 CF8M 316 Stainless Steel
• Ball Material: 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Handle Material: 300 Series Stainless Steel
• Seal and Seat Material: PTFE
• Connection Type: Female Threaded x Female Threaded
• Dimensions: End to End 2.36 inches
