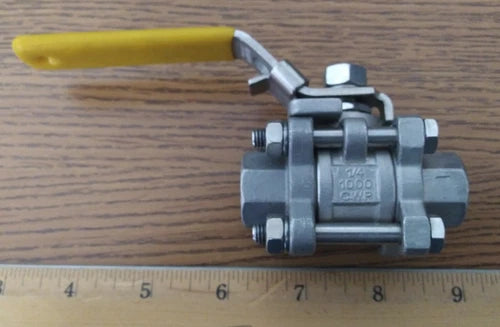

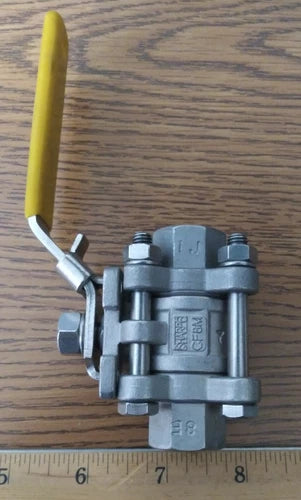

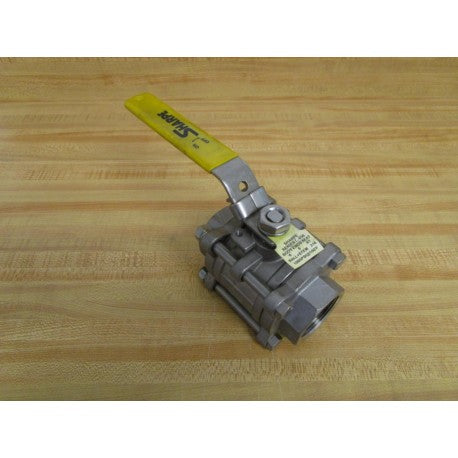

SHARPE 53036TE-12 Ball Valve

Product Description

The SHARPE 53036TE-12 is a ball valve made of 316 stainless steel. This three-piece valve is suitable for use with air, oil, and water, providing reliable performance. It features 1/2-inch threaded end connections and a full port design for efficient flow. The valve can handle pressures up to 1000 PSI at one hundred degrees Fahrenheit and can operate at temperatures reaching four hundred fifty degrees Fahrenheit. The PTFE seal material enhances durability and functionality.

• Constructed with corrosion-resistant 316 stainless steel.
• Full port design maintains optimal flow efficiency.
• Manual operation via a locking lever handle.

Product Highlights

This valve is ideal for HVAC and plumbing applications where durability and resistance to high temperatures and pressures are required.

Product Information

Standard Information

• Media Compatibility: Air, Oil, Water
• Valve Operation: Manual

Technical Specifications

• Body Material: 316 Stainless Steel
• Pressure Rating: 1000 PSI at one hundred degrees Fahrenheit
• Connection Type: (2) 1-1/2 Female NPT
• Handle Type: Locking Lever
• Port Type: Full Port
• Seal Material: PTFE
• Operating Temperature: Up to four hundred fifty degrees Fahrenheit
• MPN: 53036TE-12
