SHARPE 53036SW-34 Ball Valve

Product Description

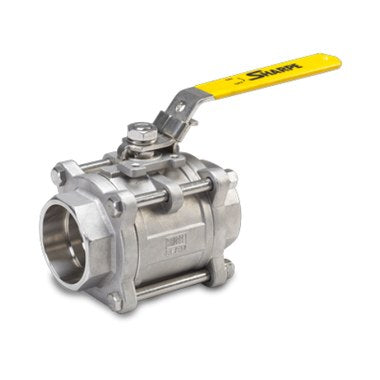

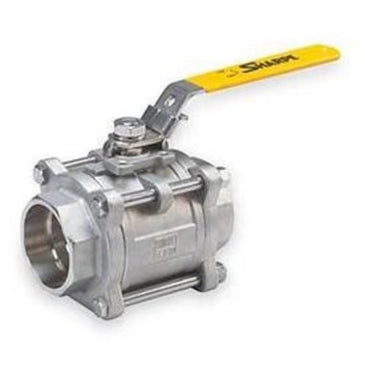

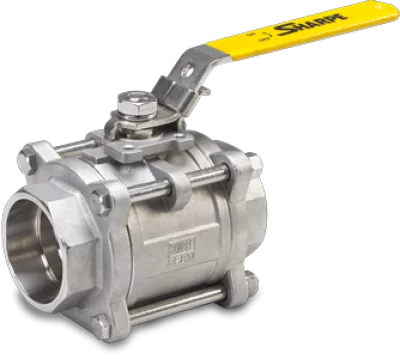

The SHARPE 53036SW-34 is a three-piece ball valve made from 316 stainless steel. This valve features three-quarter inch socket weld end connections and a full port design, allowing for unrestricted flow. It is equipped with a locking lever handle for manual operation, making it easy to use.

• Constructed from 316 stainless steel.
• Features three-quarter inch socket weld end connections.
• Employs a locking lever handle.

Product Highlights

This ball valve is ideal for applications demanding corrosion resistance and durability under specified pressure and temperature conditions.

Product Information

Standard Information

• Brand: SHARPE
• MPN: 53036SW-34

Technical Specifications

• Body Material: 316 Stainless Steel
• Ball Material: 316 Stainless Steel
• End Connection: Socket Weld
• Nominal Size: 3/4 inches
• Port Type: Full Port
• Orifice Size: 1.07 inches
• Pressure Rating: 1000 psi
• Seal Material: PTFE
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Handle Type: Locking Lever
• Type: 3-Piece
• Inlet to Outlet Length: 3.34 inches
• Top to Inlet Center: 2.47 inches
