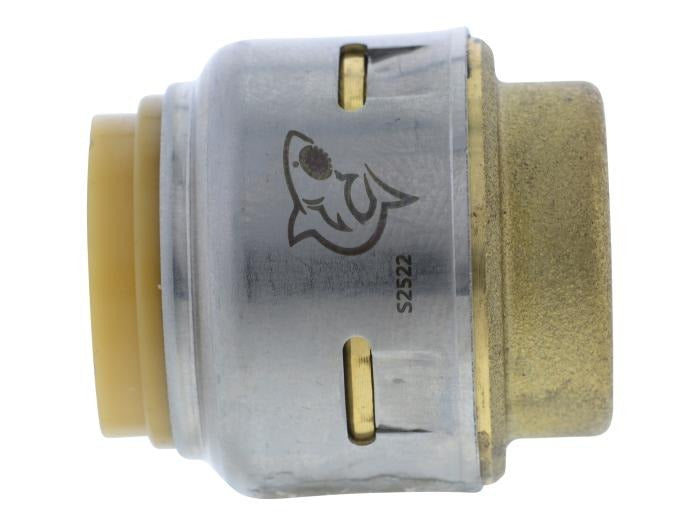

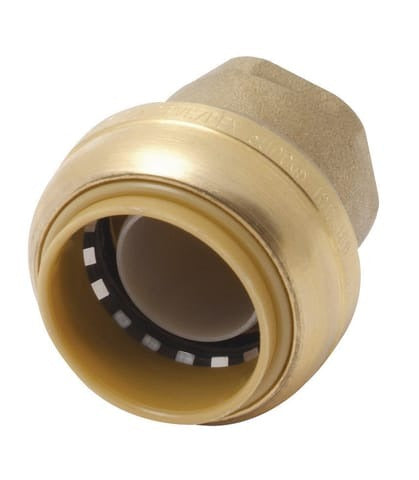

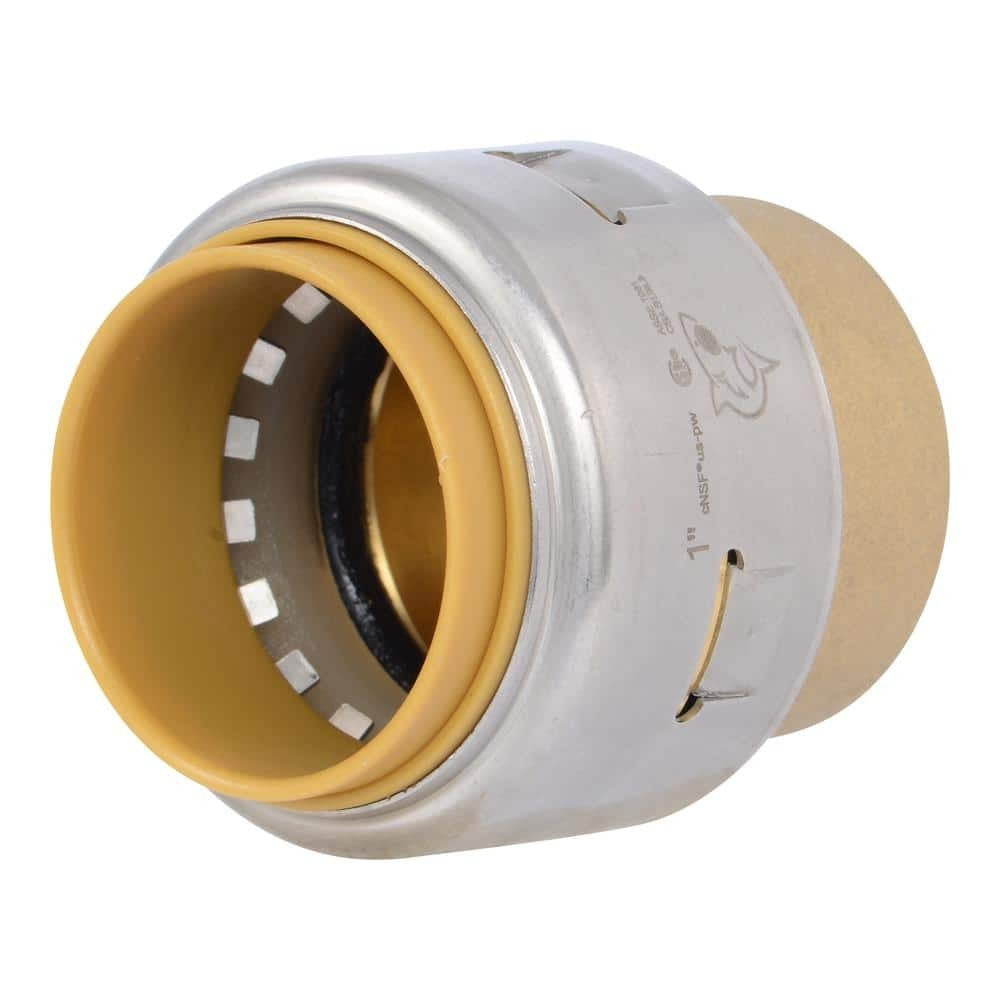

Sharkbite UR520A Max Push End Cap (1 in) Replaces UR520

Product Description

SharkBite UR520A is a 1 in push-to-connect Max end cap used to terminate PEX, copper, CPVC and PE-RT piping. The fitting features a DZR lead-free brass body with a stainless steel retainer, is rated to 200 F and 400 psi, and can be installed on wet or dry lines for immediate pressure testing. The push-to-connect design reduces insertion force and allows removal with a disconnect clip, tongs, or pro disconnect tool.

• Push-to-connect connection for 1 in PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe; no soldering or glue required
• DZR lead-free brass body with stainless steel retainer; rated to 200 F and 400 psi
• Can be installed on wet lines, pressure tested immediately, and removed with disconnect clip, disconnect tongs, or pro disconnect tool

Product Highlights

1 in push-to-connect end stop; DZR lead-free brass; 400 psi, 200 F; replaces UR520.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR520A
• Country of Origin: USA
