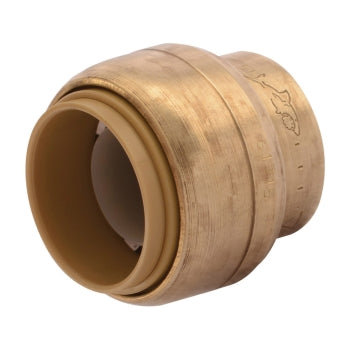

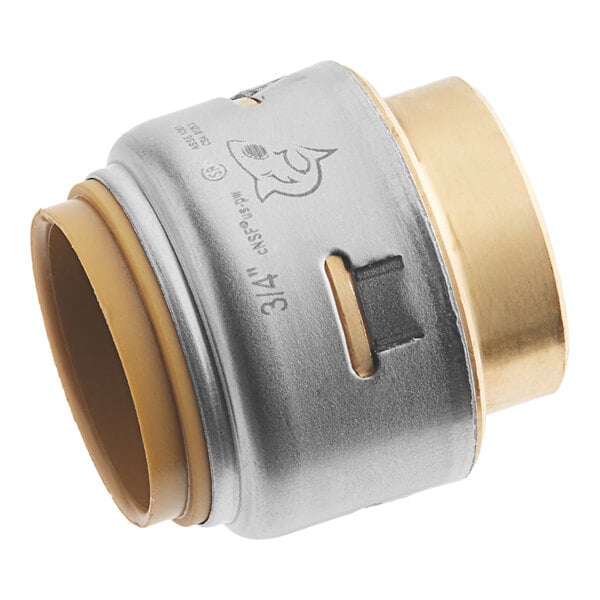

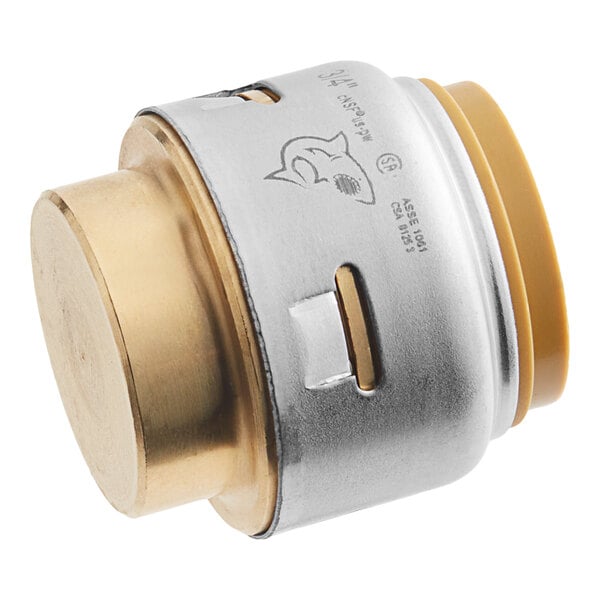

Sharkbite UR518 Max Push End Cap 3/4 in

Product Description

The SHARKBITE UR518 Max Push End Cap is designed to plug the end of PEX, copper, CPVC, and PE-RT pipe. Its push-to-connect design allows for quick installation and removal, making it ideal for tight spaces. It is made of DZR brass with a stainless-steel collar. Rated to 200°F and 400 psi.

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination.
• Requires half the insertion effort for faster connections.
• Stainless-steel collar withstands 2x the pressure rating.

Product Highlights

This end cap offers a fast, easy, and secure way to cap off plumbing lines without special tools.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR518
• Country of Origin: USA

Technical Specifications

• SKU: UR518
• Pipe Size: 3/4 in.
• Material: Lead-Free DZR Brass
• Connector Type: Plug
• Thread Size: 0.75 inch
• Style: SharkBite Max
• Number of Pieces: 6
• Model Number: UR518
• Manufacturer Part Number: UR518
• Item Type Name: Push To Connect Brass Fitting
• Included Components: 3/4 Inch Push Cap, Pack of 6
• End Style: Push-to-Connect
• Fitting/Connector Type: Cap
• Pressure Rating: 250 psi
• Temperature Rating: 200 deg F
• Application Type: Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial
• Maximum Pressure: 400 PSI
• Maximum Water Temperature: 200 Degrees F
• Nominal Size: 3/4 inch
• Series: Max Push
• Domestic/Import: Import
