Sharkbite ur370 Brass Push Tee 3/4 Inch Push-to-connect

Product Description

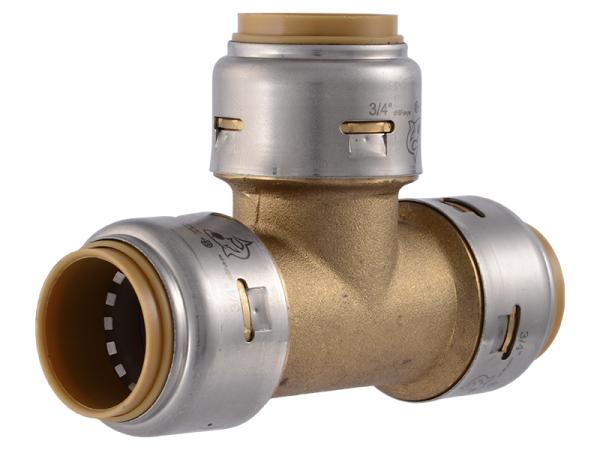

The SHARKBITE ur370 is a 3/4-inch push-to-connect brass tee fitting designed for joining PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe without soldering, crimping, gluing, or special tools. The fitting features a high-performance DZR lead-free brass body and a stainless steel retainer for added strength. It is rated to 200 degrees F and 250 psi, making it suitable for a wide range of residential and light commercial plumbing applications. The push-to-connect mechanism allows installation on wet, pressurized lines and can be pressure tested immediately after connection. Licensed plumbers and service technicians are the primary installers.

This fitting is used in residential and commercial plumbing systems where a 3/4-inch tee connection is required on PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe. It is well suited for tight spaces, repairs requiring a temporary fix, and situations where a permanent installation is needed. The fitting can be rotated after installation and removed when necessary using a disconnect clip, disconnect tongs, or a pro disconnect tool. No tube liner is required when used with PEX pipe.

Key Features

• Push-to-connect design requires no soldering, crimping, gluing, or special tools
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
• DZR lead-free brass body meets lead-free requirements for potable water systems
• Stainless steel retainer provides strength and long-term durability
• Rated to 200 degrees F and 250 psi
• Can be installed on wet lines and pressure tested immediately
• Removable after installation using disconnect clip, disconnect tongs, or pro disconnect tool

Compatibility

Designed for use with 3/4-inch PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe. Also referenced under part numbers COPITEE34, TEC-TITE 211, and U370LF.

Installation Notes

Installation is performed by licensed plumbers or qualified service technicians in accordance with applicable local plumbing codes and ASTM standards. Shut off the water supply and relieve system pressure before cutting into any existing line. Pipe ends must be cut cleanly and squarely and deburred before insertion into the fitting. When removing the fitting, use only a compatible disconnect clip, disconnect tongs, or pro disconnect tool to avoid damaging the fitting or pipe.

Technical Specifications

• Pipe Size: 3/4 inches
• Pipe Compatibility: PEX, Copper, CPVC, PE-RT, HDPE SDR-9
• Maximum Temperature Rating: 200 degrees F
• Maximum Pressure Rating: 250 psi
• Body Material: DZR Lead-Free Brass
• Retainer Material: Stainless Steel
• Warranty: 25 years (PEX, Copper, CPVC, PE-RT); 5 years (HDPE SDR-9)
• Length: 3.68 inches
• Width: 2.5 inches
• Height: 1.38 inches
• Weight: 0.34 pounds

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: ur370
