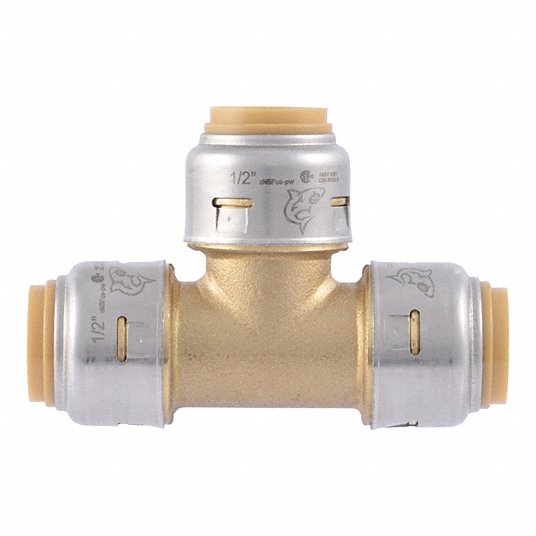

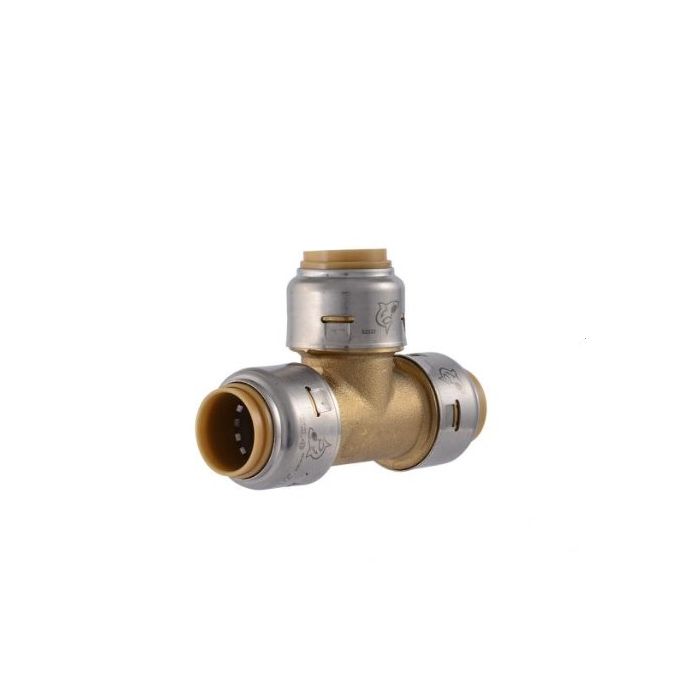

Sharkbite UR362 Max 1/2 in. Push-to-Connect Brass Tee Fitting

Product Description

The SharkBite UR362 Max 1/2 in. Push-to-Connect Brass Tee Fitting provides the fastest way to connect PEX, copper, CPVC, or PE-RT pipe. It features half the insertion force with double the burst pressure and can be installed on wet lines and pressure tested immediately. SharkBite Max tees are ideal for working in tight spaces and can be leveraged wherever repairs are needed.

• Fastest way to connect PEX, copper, CPVC, or PE-RT pipe
• Half the insertion force with double the burst pressure
• Can be installed on wet lines and pressure tested immediately

Product Highlights

Connects PEX, copper, CPVC, or PE-RT pipe with ease. Installs on wet lines and can be pressure tested immediately.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR362
• Country of Origin: Estados Unidos

Technical Specifications

• Triple Fitting Size: 1/2" x 1/2" x 1/2"
• Pack Size: 1
• Brand: SharkBite
• Type: Tee
• Shape: Tee
• Number in Pack: 1
• Model: UR362
• Material: Brass
• MPN: UR362
• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 1/2 Inch
• Series: Max Push
• Pressure Rating: 200 deg F
• Temperature Rating: 400 psi
• Fitting Shape: Tee with Swivel (Run x Run x Branch)
• Fitting Material: Brass 304 DZR Brass; Brass 316 DZR Brass
• System of Measurement: Imperial
• Finish: Brass
• Temperature Range: 33 °F to 200 °F
• Maximum Operating Pressure: 400 psi
• Compatible Tube Material: PEX, Copper, CPVC, PE-RT and SDR 9 HDPE Pipes
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side A Tube Outer Diameter: 1/2 in
• Fitting Side A Copper Tube Size: 1/2 in
• Fitting Side B Connection Type: Push-to-Connect
• Fitting Side B Tube Outer Diameter: 1/2 in
• Fitting Side C Connection Type: Push-to-Connect
• Fitting Side C Tube Outer Diameter: 1/2 in
• Overall Length: 2-29/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
• Additional Information: Lead-Free
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Size 3: 1/2 in
• Connection Type 1: Push-to-Connect
• Connection Type 2: Push-to-Connect
• Connection Type 3: Push-to-Connect
• Connection Type: Push-Fit|Push-Fit|Push-Fit
• Material Construction: DZR Brass
• Pressure: 250 psi
