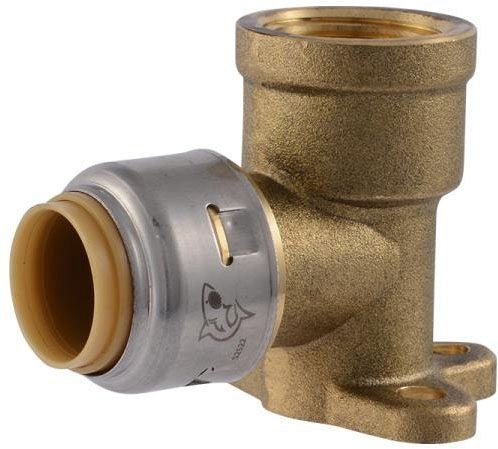

Sharkbite ur334 1/2 in Push Drop-ear Elbow Fnpt Brass

Product Description

The SHARKBITE ur334 is a push-to-connect drop-ear elbow fitting that creates a 90-degree transition between push-connect pipe and a female NPT threaded outlet. Made from high-performance DZR lead-free brass with a stainless steel retainer, this fitting is rated to 200 degrees F and 250 psi. It is designed for licensed plumbers and experienced installers working on residential and light commercial water supply systems. No soldering, crimping, glue, or special tools are required. The fitting can be installed on wet lines and pressure tested immediately after connection.

The ur334 is commonly used when installing shower arms and tub spouts, where the fitting mounts to wall blocking or framing and provides a threaded outlet for the fixture arm. It is approved for underground and behind-the-wall applications without access panels. Compatible pipe types include PEX, copper, CPVC, PE-RT, and HDPE SDR-9. No tube liner is required for PEX. The fitting can be rotated after installation to align the threaded port, and it can be removed using a disconnect clip, disconnect tongs, or a pro disconnect tool.

Key Features

• Push-to-connect inlet requires no tools, soldering, crimping, or glue
• DZR lead-free brass body rated to 250 psi and 200 degrees F
• Stainless steel retainer adds pull-out strength and durability
• Approved for underground and concealed behind-the-wall installations with no access panel required
• Can be installed on wet, pressurized lines and pressure tested immediately
• Removable with standard disconnect clip, tongs, or pro disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe on the push-connect side. The 1/2 inch FNPT outlet accepts standard male NPT threaded fittings and fixture connections. A 25-year warranty applies when properly installed with PEX, copper, CPVC, or PE-RT. A 5-year warranty applies when properly installed with HDPE SDR-9.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Shut off the water supply and relieve line pressure before working on existing systems, though the fitting is rated for installation on wet lines when needed. Ensure pipe ends are cut cleanly and squarely and are free of burrs before insertion. Verify insertion depth and conduct a pressure test after installation to confirm a leak-free connection.

Technical Specifications

• Inlet Size: 1/2 inch push-to-connect
• Outlet Size: 1/2 inch FNPT
• Connection Angle: 90 degrees
• Maximum Pressure: 250 psi
• Maximum Temperature: 200 degrees F
• Body Material: DZR lead-free brass
• Retainer Material: Stainless steel
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE SDR-9
• Weight: 0.23 pounds
• Length: 2.36 inches
• Width: 1.71 inches
• Height: 1.57 inches
• Warranty: 25 years (PEX, copper, CPVC, PE-RT); 5 years (HDPE SDR-9)

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: ur334
